Cylindrical NO Reed Switch 500mA 400V - PTA 470/30

by Comus
SKU 552573

MPN: S1290

Availability:
197 in stock
Original price £8.96 - Original price £8.96
Original price
£8.96 Inc VAT
£8.96 - £8.96
Current price £8.96 Inc VAT

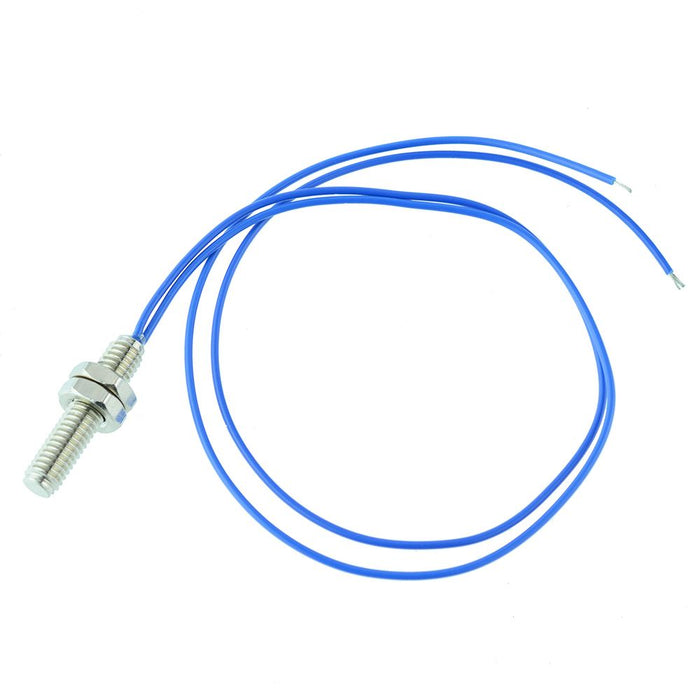

The PTA 470/30 is a proximity switch featuring normally open contacts, M6 thread and nickel plated brass case. Suitable for applications including position and limit sensing, linear actuators, security system switch, door switch.

  • Suggested magnet: PRM
  • Normally open contacts
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 3mm Min
  • 2 x round 0.22mm² PVC insulated blue wire
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPST-NO
    Material Nickel Plated Brass
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC
    Operating temperature -20°C to +85°C
