Cylindrical Reed Switch CO 500mA 100V - PTC 130/30, S1498

by Comus
SKU 552596

MPN: S1498

11 in stock
Original price £10.97 - Original price £10.97
Original price
£10.97 Inc VAT
£10.97 - £10.97
Current price £10.97 Inc VAT

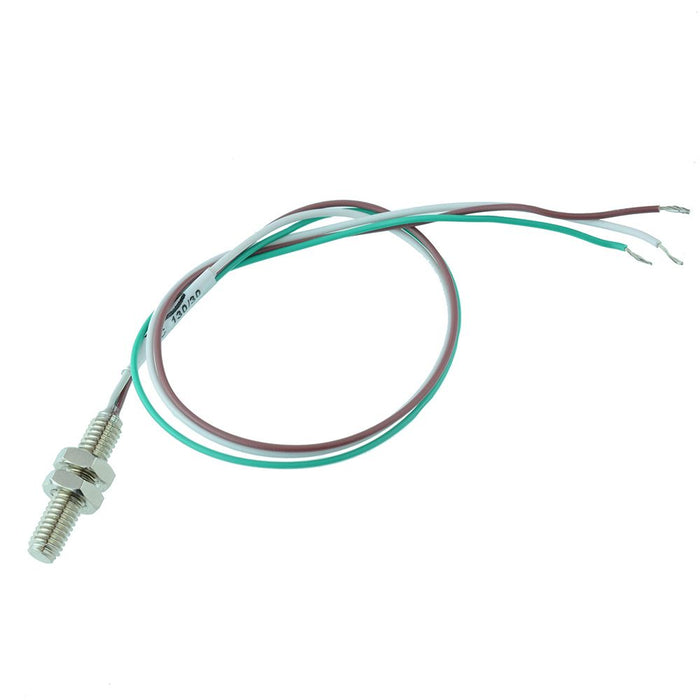

The PTC 130/30 is a prewired cylindrical reed switch featuring changeover contacts, featuring a nickel plated brass case. The switch is suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: PRM
  • Changeover contacts
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 5W/VA
  • Switching distance: 3mm min
  • 3 x 0.22mm² PVC insulated brown / white / green
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPDT
    Material Nickel Plated Brass
    Maximum switching capacity 5W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 100VAC
    Operating temperature -20°C to +85°C
