Cylindrical Reed Switch NC 300mA 100V - PRB 130/30, S1479
by Comus
SKU 552595
MPN: S1479
Availability:
7 in stock
Original price
£7.25
-
Original price
£7.25
Original price
£7.25
£7.25
-
£7.25
Current price
£7.25

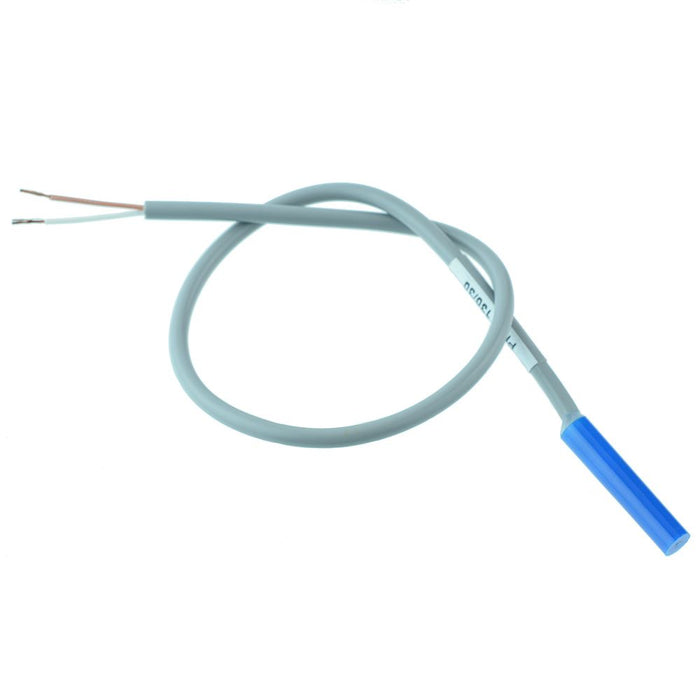

The PRB 130/30 is a prewired cylindrical reed switch featuring normally closed contacts, moulded from blue Nylon 66. The switch is suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.
Suggested magnet: PRM
Normally closed contacts
Maximum switching voltage: 100VAC
Maximum switching current: 0.3A
Maximum switching capacity: 10W/VA
Switching distance: 3mm min
2 x 0.14mm² PVC covered grey and insulated brown / white
Specification
| Back Order Lead Time | 180 Days |
| Carry Current | 1A |
| Contact Configuration | SPST-NC |
| Diameter | 6mm |
| Material | Nylon 66 |
| Maximum Switching Capacity | 100W/VA |
| Maximum Switching Current | 0.3A |
| Maximum Switching Voltage | 100VAC |
| Operating Temperature | -20°C to +85°C |
