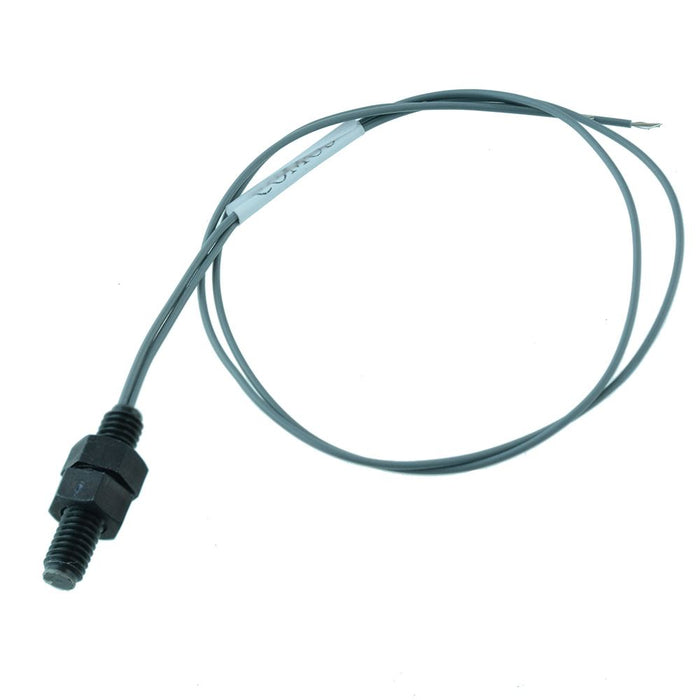

Cylindrical Reed Switch NO 500mA 400V - S1476, PTAP 470/30
by Comus
SKU 552594
MPN: S1476
Availability:
10 in stock
Original price
£12.94
-
Original price
£12.94
Original price
£12.94
Inc VAT
£12.94
-
£12.94
Current price
£12.94
Inc VAT
The S1476 is a cylindrical reed switch featuring normally open contacts, designed to provide a low cost solution to to position or limit sensing applications.
M6 thread Black acetal case Normally open contacts Maximum switching voltage: 400VAC Maximum switching current: 0.5A Maximum switching capacity: 10W/VA Switching distance: 3mm min 2 x 0.22mm² PVC insulated grey wire
Specification
| Back order lead time | 180 Days |
| Carry current | 1A |
| Contact configuration | SPST-NO |
| Material | Black Acetal |
| Maximum switching capacity | 10W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 400VAC |
| Operating temperature | -20°C to +85°C |
