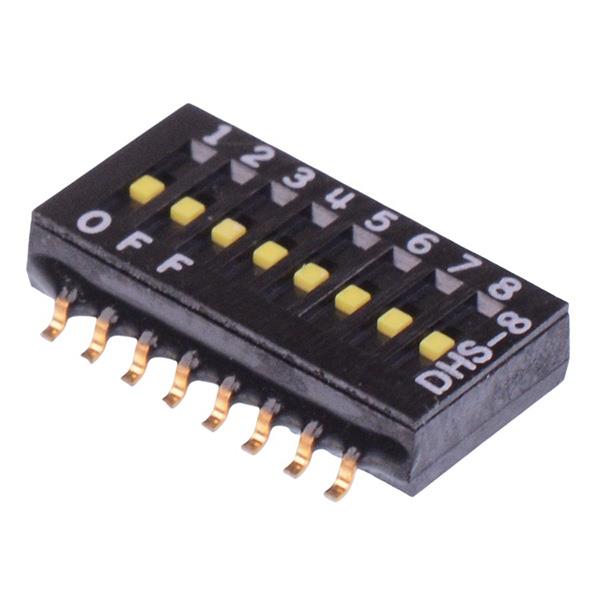

DHS8SR/TC APEM 8-Way Surface Mount 1.27mm DIP Switch SPST
by APEM
SKU 487319
MPN: DHS8SR/TC
Availability:
992 in stock
Original price
£1.06
-
Original price
£1.06
Original price
£1.06
£1.21
£1.21
-
£1.21
Current price
£1.21
The DHS8SR/TC is a 8 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 100ma current rating, suitable for PCB applications.
Flush actuator 8 ways Switch rating: 100mA 6VDC Contact rating: 100mA 50VDC Gold plated terminals 1.27mm pitch Tape packaging
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Copper Alloy |
| Contact Rating | 100mA 50VDC |
| Current Rating | 100mA |
| Electrical Life | 1,000 Cycles |
| Material | UL94-V0 |
| Mounting Style | Surface Mount |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Temperature | -40°C to 80°C |
| Pitch | 1.27mm |
| Product Series | DHS |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 50VDC |
