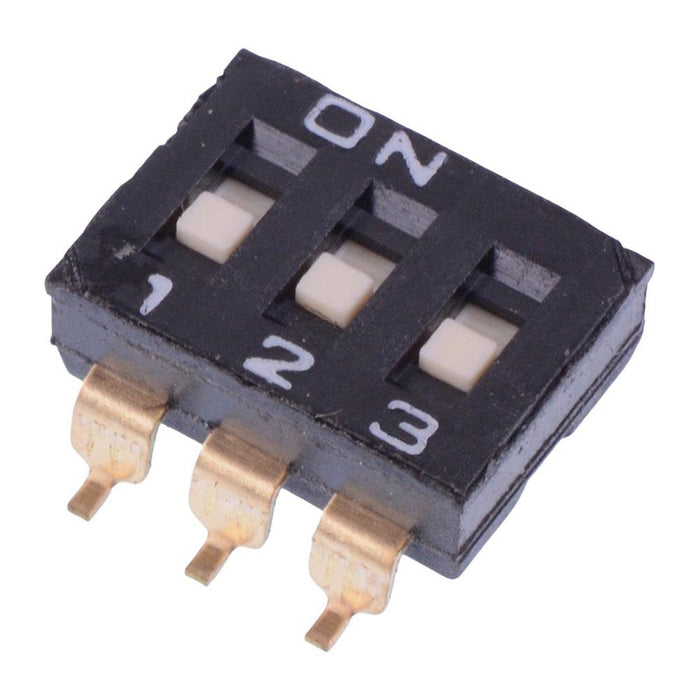

DMR03TV/TR APEM 3-Way Surface Mount 2.54mm DIP Switch SPST

SKU 487238


Back Order Availability:

5400 in stock, ready to be shipped
Original price £0.45 - Original price £0.45
Original price
£0.45 Inc VAT
£0.45 - £0.45
Current price £0.45 Inc VAT
The DMR03TV/TR is a 3 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.

  • Recessed actuator
  • 3 ways
  • Switch rating: 25mA 24VDC
  • Contact rating: 100mA 50VDC
  • Gold plated terminals
  • 2.54mm pitch
  • Tape seal
  • Tape packaging
  • Specification
    Actuation Latching
    Contact configuration SPST
    Contact material Gold Plated
    Contact rating 100mA 50VDC
    Current rating 25mA
    Electrical life 2,000 Cycles
    Material UL94-V0
    Mounting style SMT
    Number of positions 2
    Number of ways 3
    Operating temperature -40°C to +85°C
    Pitch 2.54mm
    Product series DM
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
