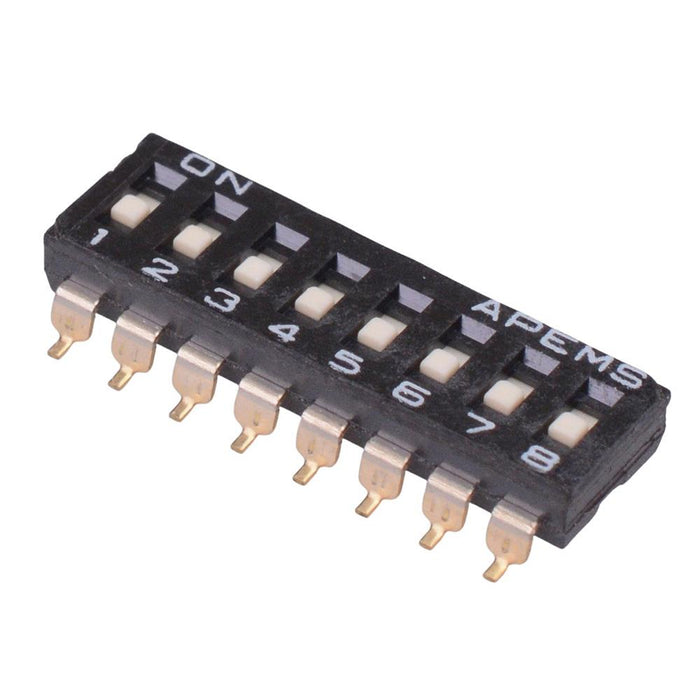

DMR08TV 8-Way Surface Mount 2.54mm DIP Switch SPST APEM
by APEM
SKU 492484
MPN: DMR08TV
Availability:
3201 in stock
Original price
£0.86
-
Original price
£0.86
Original price
£0.86
£0.86
-
£0.86
Current price
£0.86
The DMR08TV is a 8 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.
Recessed actuator 8 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated terminals 2.54mm pitch Tape seal
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Copper Alloy |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| MOQ | 1 |
| Mounting Style | Surface Mount |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
