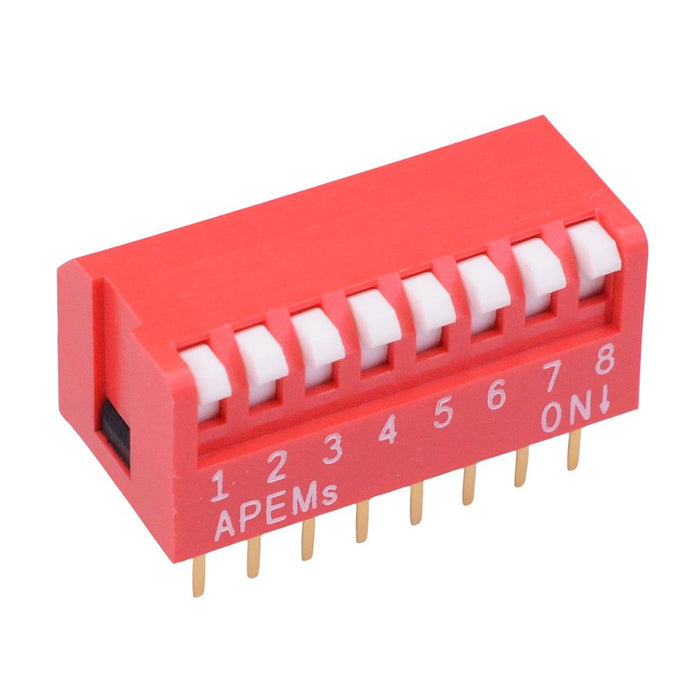

DP08V 8-Way Piano DIP Switch SPST APEM
by APEM
SKU 492485
MPN: DP08V
Availability:
22 in stock
Original price
£0.88
-
Original price
£0.88
Original price
£0.88
£0.88
-
£0.88
Current price
£0.88
The DP08V is a 8 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
8 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Force | 3.92N Max |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
