DPDT Changeover Push Button Latching Switch
SKU 120026
MPN: 120026
Availability:
460 in stock
Original price
£0.50
-
Original price
£0.50
Original price
£0.50
Inc VAT
£0.50
-
£0.50
Current price
£0.50
Inc VAT

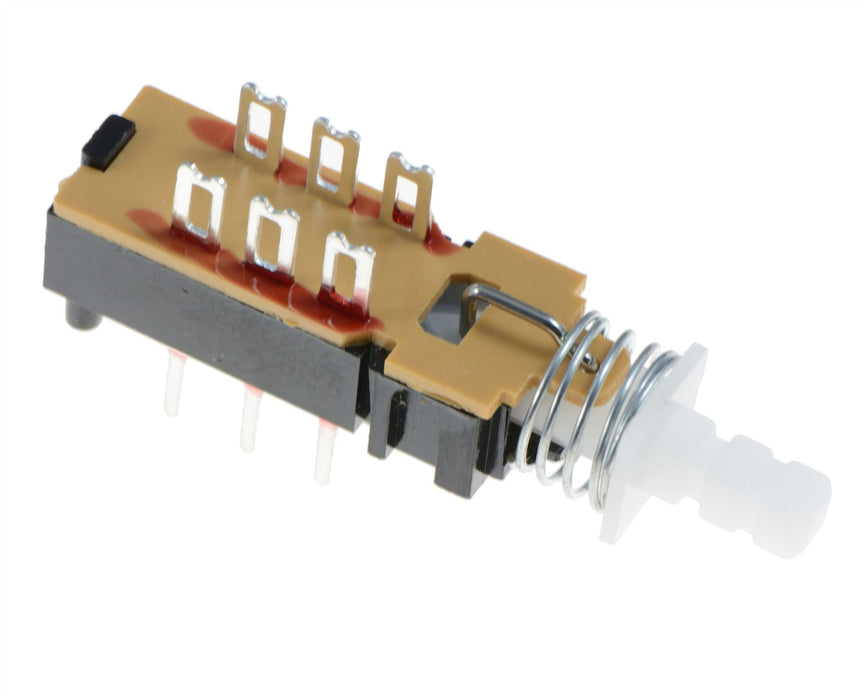

Latching push button switch with DPDT contacts. The switch has PCB terminals underneath and solder terminals on the top, making them suitable for a wide range of applications.
DPDT contacts PCB terminals underneath and solder terminals on the top 3.3 x 3.3mm square button size Dimensions: 43 x 17.5 x 9mm (Length x Height x Width)
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Contact configuration | DPDT |
| Contact rating | 0.3A 30VDC |
| Current rating | 0.3A |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 250gf |
| Operating temperature | -20°C to +85°C |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
