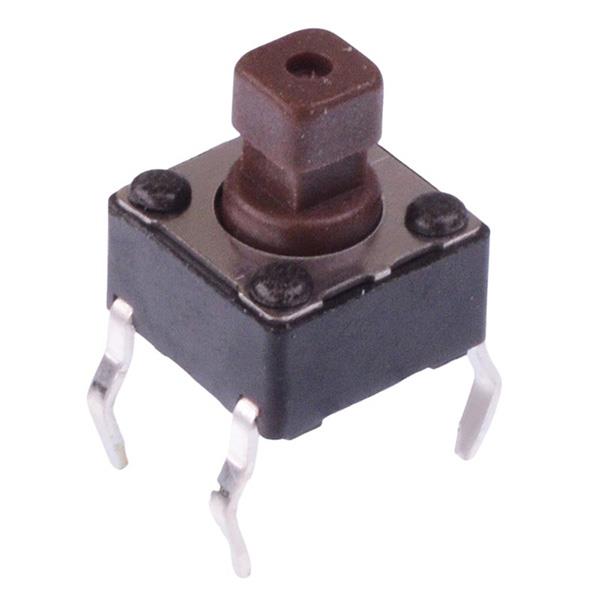

DTS648NV APEM 7.3mm PCB Tactile Switch 6x6mm SPST

SKU 487779


4985 in stock
Original price £0.19 - Original price £0.19
Original price
£0.19 Inc VAT
£0.19 - £0.19
Current price £0.19 Inc VAT
The DTS648NV is a 6x6mm package tactile switch with 7.3mm height suitable for through hole PCB applications. The switch features 50mA 12VDC contact rating and is suitable for a wide range of applications including industrial, instrumentatation, audio equipment etc.

  • 6x6mm package
  • 7.3mm height (includes switch body)
  • 2.8x2.8mm square actuator
  • Contact rating: 50mA 12VDC
  • Operating force: 160gf
  • Terminal pitch: 6.5 x 4.5mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact rating 50mA 12VDC
    Current rating 50mA
    Electrical life 200,000 Cycles
    Height 7.3mm
    Moq 5
    Mounting style PCB
    Number of positions 2
    Operating force 160gf
    Operating temperature -25°C to +70°C
    Pitch 6.5 x 4.5mm
    Product series DTS
    Switch operation Off-(On)
    Terminal type Through Hole
    Voltage rating 12VDC
