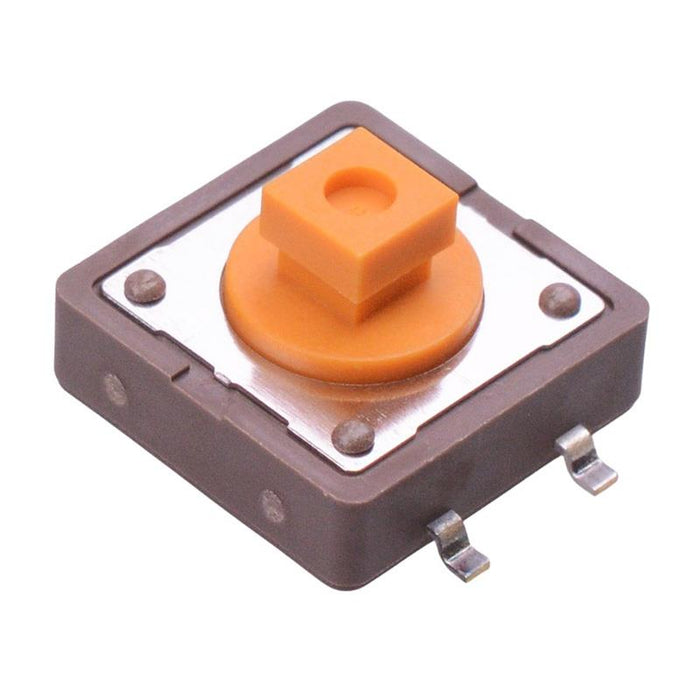

DTSM-24S-V 7.3mm Height Square 12mm x 12mm Surface Mount Tactile Switch 320gf
by Diptronics
SKU 492493
MPN: DTSM-24S-V
Availability:
3000 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.19
-
£0.19
Current price
£0.19
The DTSM-24S-V is a vertical tactile switch with a 12mm x 12mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is suitable for SMT mounting.
Vertical SMT mounting 12mm x 12mm package 7.3mm height 3.8 x 3.8mm square actuator Rating: 50mA 12VDC Operating force: 320gf Travel: 0.35mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Salmon |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 7.3mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 320gf |
| Operating Temperature | -40°C to +85°C |
| Pitch | 13.45 x 5.0mm |
| Product Series | DTSM-2 |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
