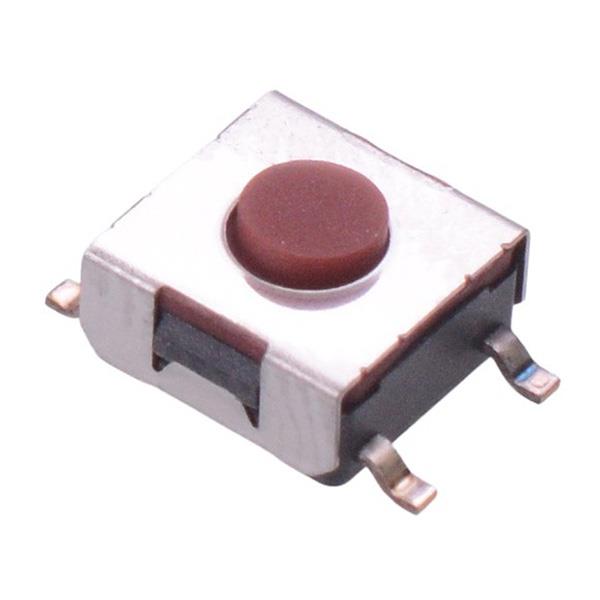

DTSMW-65N-V 3.5mm Height 6 x 6mm Surface Mount Tactile Switch 180gf
by Diptronics
SKU 492495
MPN: DTSMW-65N-V
Availability:
205 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
-
£0.32
Current price
£0.32
The DTSMW-65N-V is a vertical tactile switch with a 6mm x 6mm standard package and 3.5mm height. The switch provides a positive tactile feedback and is supplied in tape packaging, suitable for SMT mounting.
Vertical SMT mounting 6mm x 6mm package 3.5mm height Rating: 50mA 12VDC Operating force: 180gf Travel: 0.45mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Brown |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 3.5mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 180gf |
| Operating Temperature | -40°C to +85°C |
| Pitch | 8.9 x 4.0mm |
| Product Series | DTS(G)MW-6 |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
