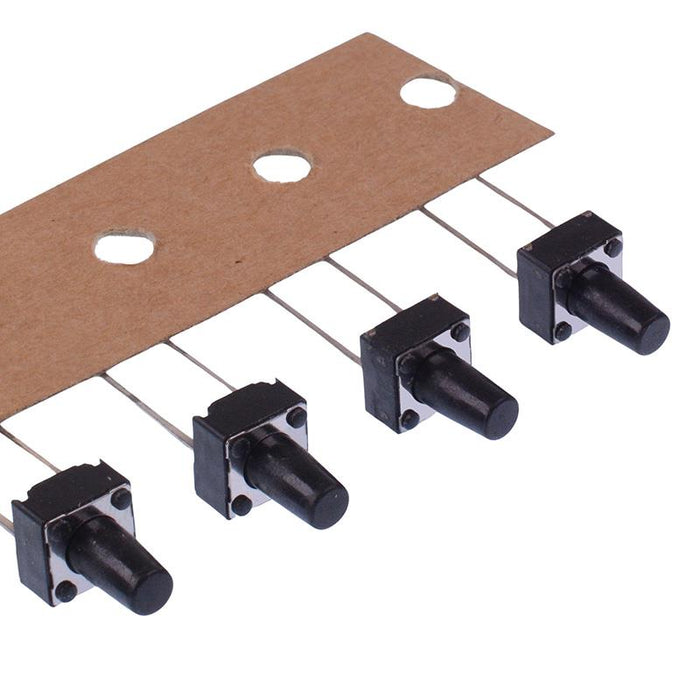

DTST-65KV APEM 9.5mm PCB Tactile Switch 6x6mm SPST Tape
by APEM
SKU 487693
MPN: DTST-65KV
Availability:
5330 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
Inc VAT
£0.19
-
£0.19
Current price
£0.19
Inc VAT
The DTST-65KV is a 6x6mm package tactile switch with 9.5mm height suitable for through hole PCB applications. The switch features 50mA 12VDC contact rating and is suitable for a wide range of applications including industrial, instrumentatation, audio equipment etc.
6x6mm package 9.5mm height (includes switch body) Contact rating: 50mA 12VDC Operating force: 100gf Terminal pitch: 6.5 x 4.5mm
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Electrical life | 200,000 Cycles |
| Height | 9.5mm |
| Moq | 5 |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 100gf |
| Operating temperature | -25°C to +70°C |
| Product series | DTS |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 12VDC |
