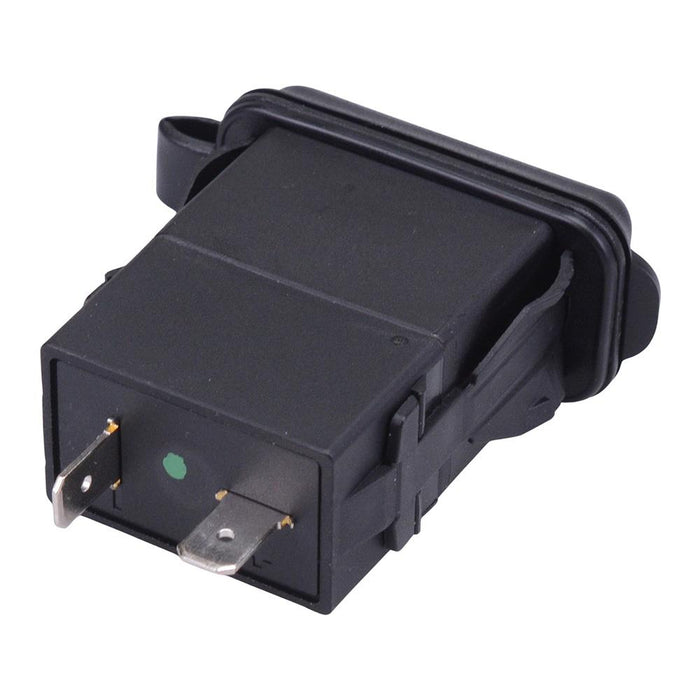

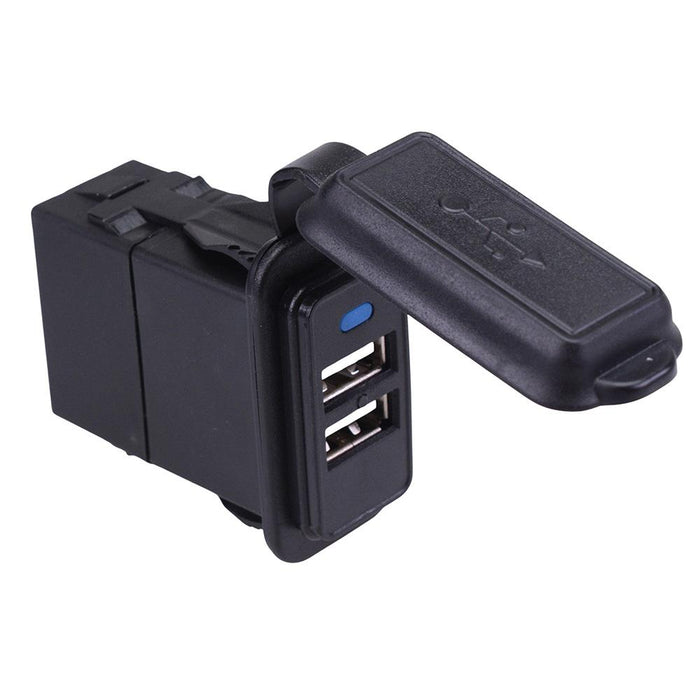

Dual USB-A 5V 2.4V Panel Mount Socket IP64 A13-208

A13-208 dual USB-A snap-in panel mount socket featuring a 12-24VDC input rating and USB ports with a 5V 2.4A output. The socket requires a 36.8 x 21mm panel cut-out and features 6.3mm quick connect terminals. The socket features a waterproof sealing cap and LED illumination which illuminates when the socket is powered. Suitable for a wide range of automotive applications.

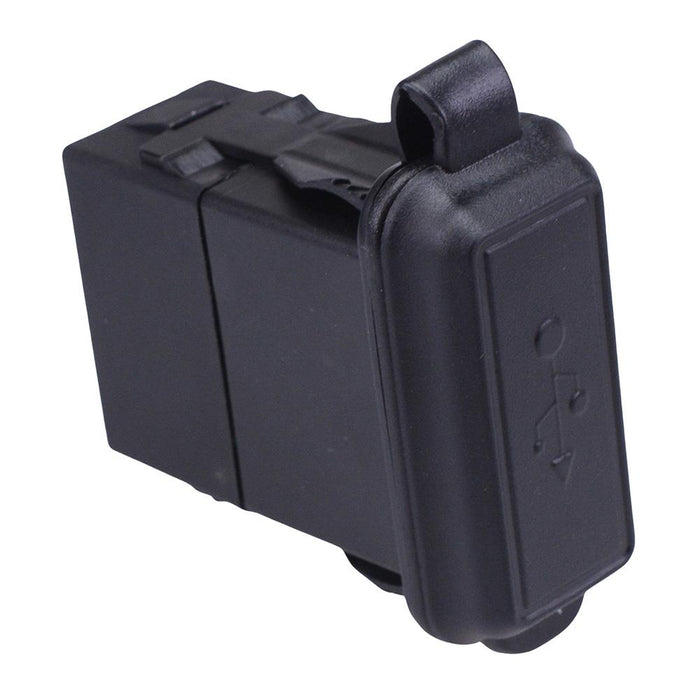

Waterproof sealing cover

LED internal illumination shows when the socket is powered

Input rating: 12-24VDC

Output rating: 5V 2.4A / 5V 2.4A

Panel cut-out: 36.8 x 21mm

Panel thickness: 1-5.5mm

Protection level: IP64

Dimensions: 63 x 24 x 47mm (height x width x length)
