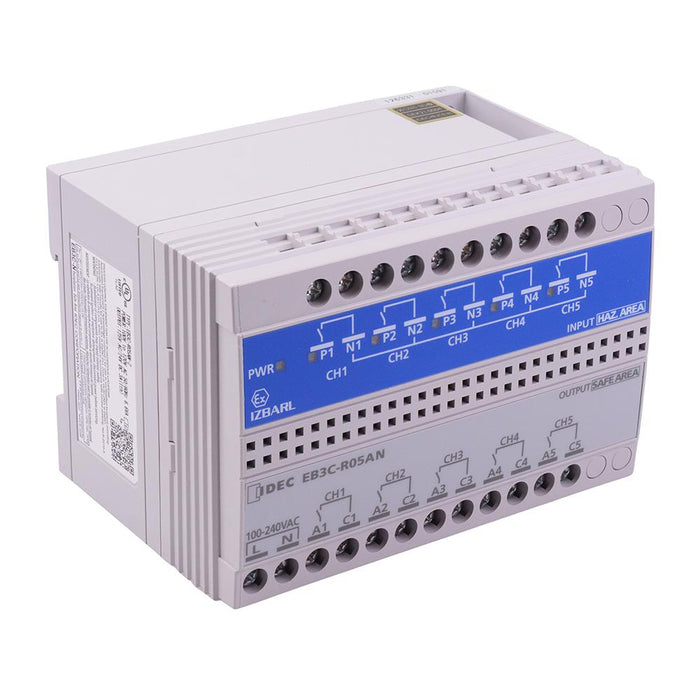

EB3C-R05AN 5 Channel Relay Barrier 100-240VAC IDEC

The EB3C-R05AN is a 5 channel intrinsically safe relay barrier designed to limit current, voltage and total energy delivered to a sensor or any other actuator instrument located in a hazardous area. When used in areas with hazardous chemicals, gases or other ignitable atmospheres, limiting the energy is required to prevent any possible fires & explosions from occurring. Dry contact switches can be connected to the EB3C. Illuminated switches also can be connected with the combination of the EB3S Relay and the EB3L Lamp Barriers.

5 channels

Relay output contact configuration: 1NO

IEC60079 compliant

Zone 0 / Class I Division 1 locations

Dry-contact switches with 0.5Ω maximum contact resistance can be connected to the EB3C

Ideal for connection to PLCs

Universal AC power voltage (100 to 240V AC)

Installation: 35-mm-wide DIN rail mounting or direct panel mounting

Global usage USA: FM Canada: CSA Europe: CE marking, ATEX
