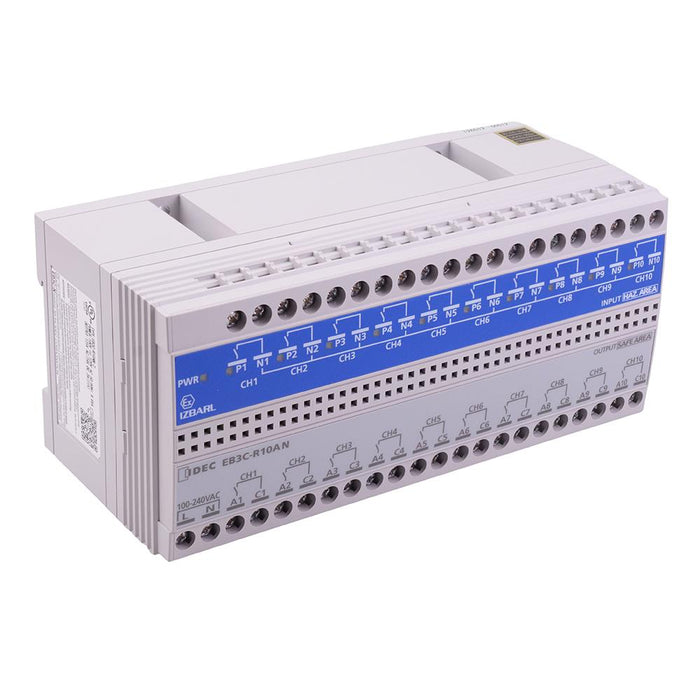

EB3C-R10AN 10 Channel Relay Barrier 100-240VAC IDEC

The EB3C-R10AN is a 10 channel intrinsically safe relay barrier designed to limit current, voltage and total energy delivered to a sensor or any other actuator instrument located in a hazardous area. When used in areas with hazardous chemicals, gases or other ignitable atmospheres, limiting the energy is required to prevent any possible fires & explosions from occurring. Dry contact switches can be connected to the EB3C. Illuminated switches also can be connected with the combination of the EB3S Relay and the EB3L Lamp Barriers.

10 channels

Relay output contact configuration: 1NO

IEC60079 compliant

Zone 0 / Class I Division 1 locations

Dry-contact switches with 0.5Ω maximum contact resistance can be connected to the EB3C

Ideal for connection to PLCs

Universal AC power voltage (100 to 240V AC)

Installation: 35-mm-wide DIN rail mounting or direct panel mounting

Global usage USA: FM Canada: CSA Europe: CE marking, ATEX
