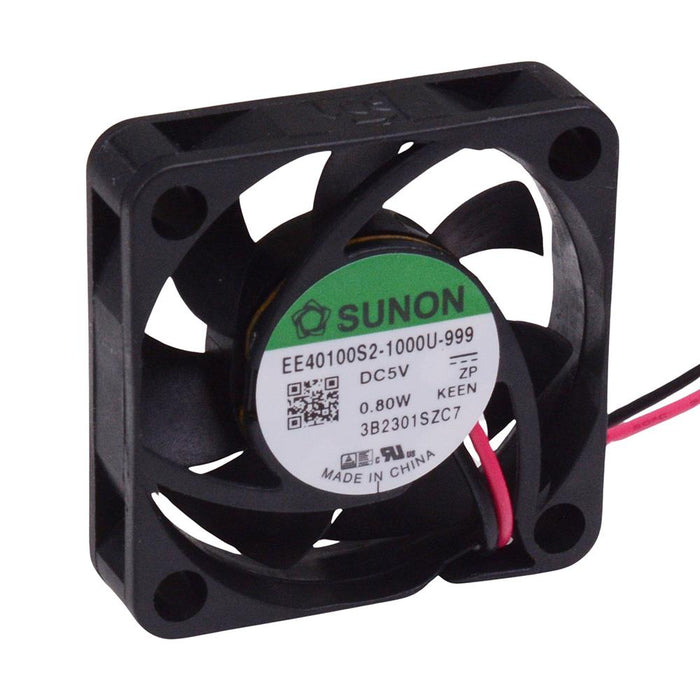

EB40100S2-999 5V DC Brushless Axial Fan 40 x 40 x 10mm
by Sunon
SKU 480025
MPN: EE40100S2-1000U-999
Availability:
48 in stock
Original price
£5.51
-
Original price
£5.51
Original price
£5.51
Inc VAT
£5.51
-
£5.51
Current price
£5.51
Inc VAT
EB40100S2-999 5V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 10mm thermoplastic frame and is terminated using the wire leads.
Supply voltage: 5VDC Operating voltage: 3.5-6VDC Power consumption: 1W Current rating: 0.205A Noise level: 27dBA Fan speed: 5800rpm Slide bearing
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Current rating | 0.12A |
| Efficiency | 11.99m3/h |
| Height | 40mm |
| Length | 40mm |
| Material | Thermoplastic |
| Noise level | 23dBA |
| Operating temperature | -10°C to 70°C |
| Operating voltage | 3.5V to 6VDC |
| Power consumption | 0.8W |
| Rotational speed | 6100rpm |
| Supply voltage | 5VDC |
| Type of bearing | Slide |
| Width | 10mm |
