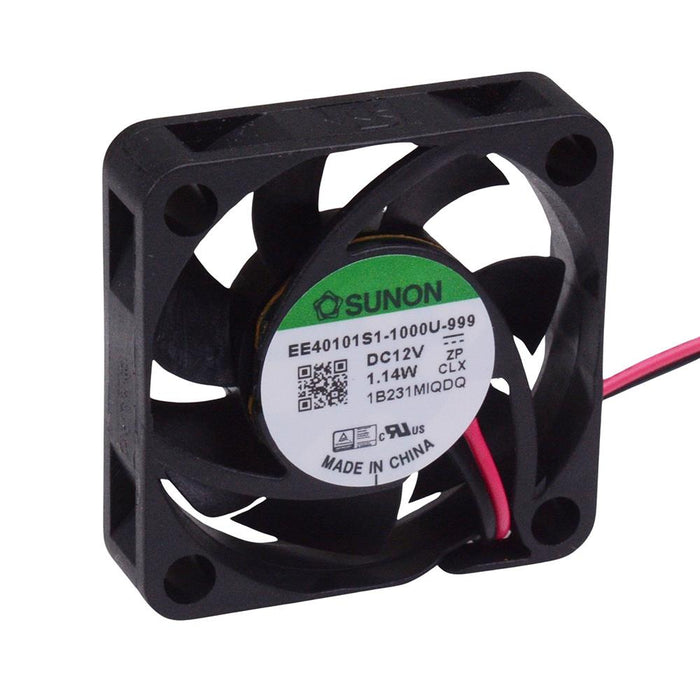

EB40101S2-999 12V DC Brushless Axial Fan 40 x 40 x 10mm
by Sunon
SKU 480026
MPN: EE40101S1-1000U-999
Availability:
49 in stock
Original price
£4.73
-
Original price
£4.73
Original price
£4.73
Inc VAT
£4.73
-
£4.73
Current price
£4.73
Inc VAT
EB40101S2-999 12V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 10mm thermoplastic frame and is terminated using the wire leads.
Supply voltage: 12VDC Operating voltage: 6-13.8VDC Power consumption: 1.08W Current rating: 0.09A Noise level: 27dBA Fan speed: 5800rpm Slide bearing
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Current rating | 0.082mA |
| Efficiency | 13.87m3/h |
| Height | 40mm |
| Length | 40mm |
| Material | Thermoplastic |
| Noise level | 28.8dBA |
| Operating temperature | -10°C to 70°C |
| Operating voltage | 4.5V to 13.8VDC |
| Power consumption | 1.14W |
| Rotational speed | 7300rpm |
| Supply voltage | 12VDC |
| Type of bearing | Slide |
| Width | 10mm |
