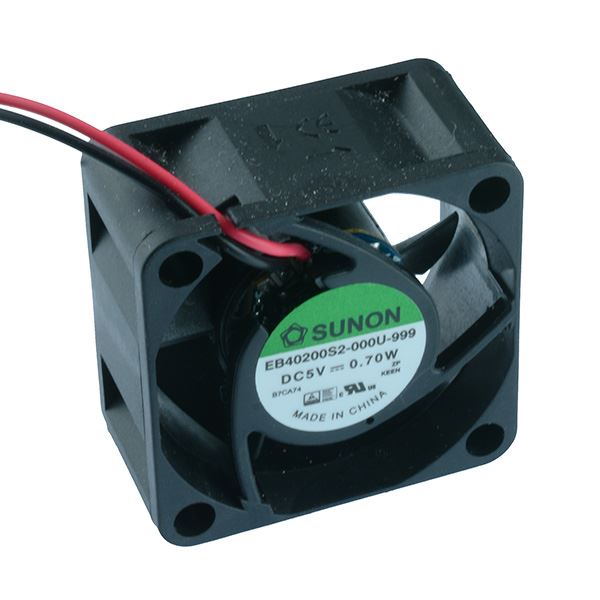

EB40200S2-999 5V DC Brushless Axial Fan 40 x 40 x 20mm
by Sunon
SKU 480045
MPN: EB40200S2-999
Availability:
Out of stock
Sold out
Original price
£7.42
-
Original price
£7.42
Original price
£7.42
Inc VAT
£7.42
-
£7.42
Current price
£7.42
Inc VAT
EB40200S2-999 5V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 20mm thermoplastic frame and is terminated using the wire leads.
Supply voltage: 5VDC Operating voltage: 4-6VDC Power consumption: 0.7W Current rating: 0.14A Noise level: 21dBA Fan speed: 6200rpm Slide bearing
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Current rating | 0.14A |
| Efficiency | 13.08m3/h |
| Height | 40mm |
| Length | 40mm |
| Material | Thermoplastic |
| Noise level | 21dBA |
| Operating temperature | -10°C to 70°C |
| Operating voltage | 4V to 6VDC |
| Power consumption | 0.7W |
| Rotational speed | 6200rpm |
| Supply voltage | 5VDC |
| Type of bearing | Slide |
| Width | 20mm |
