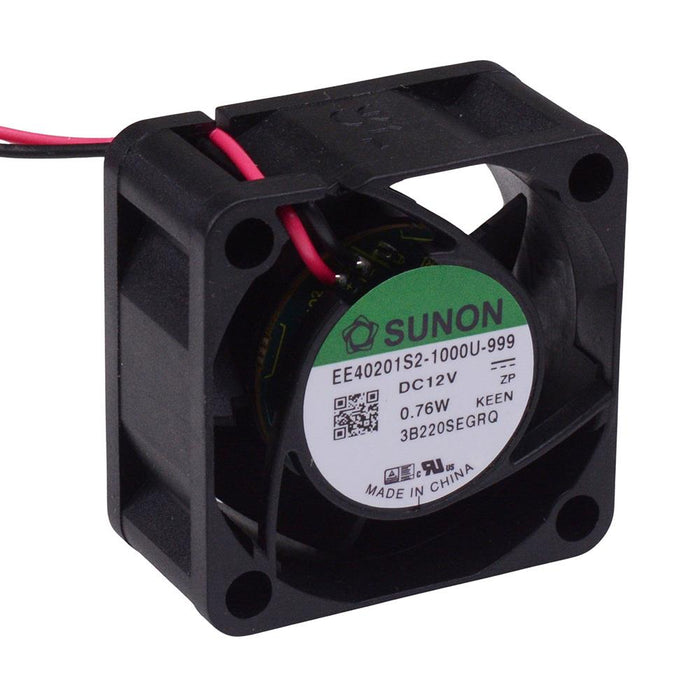

EB40201S2-999 12V DC Brushless Axial Fan 40 x 40 x 20mm
by Sunon
SKU 480027
MPN: EE40201S2-1000U-999
Availability:
10 in stock
Original price
£7.32
-
Original price
£7.32
Original price
£7.32
Inc VAT
£7.32
-
£7.32
Current price
£7.32
Inc VAT
EB40201S2-999 12V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 20mm thermoplastic frame and is terminated using the wire leads.
Supply voltage: 12VDC Operating voltage: 4.5-13.8VDC Power consumption: 0.76W Current rating: 0.063A Noise level: 21dBA Fan speed: 6200rpm Slide bearing
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Current rating | 0.063A |
| Efficiency | 13.01m3/h |
| Height | 40mm |
| Length | 40mm |
| Material | Thermoplastic |
| Noise level | 21dBA |
| Operating temperature | -10°C to 70°C |
| Operating voltage | 4.5V to 13.8VDC |
| Power consumption | 0.76W |
| Rotational speed | 6000rpm |
| Supply voltage | 12VDC |
| Type of bearing | Slide |
| Width | 20mm |
