EC-AMA-F-013-A Red Triangle 22mm Emergency Stop Switch IP65 APEM
by APEM
SKU 491216
MPN: EC-AMA-F-013-A
Availability:
20 in stock
Original price
£18.12
-
Original price
£18.12
Original price
£18.12
£19.03
£19.03
-
£19.03
Current price
£19.03

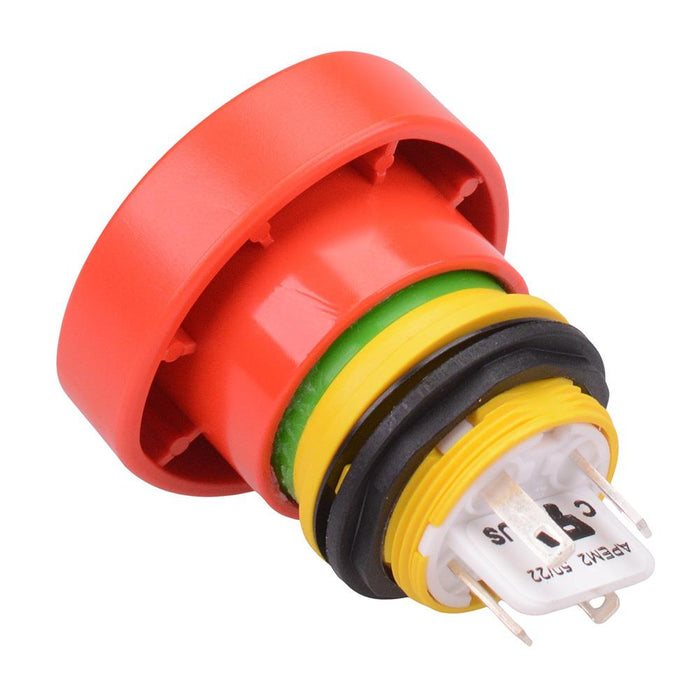

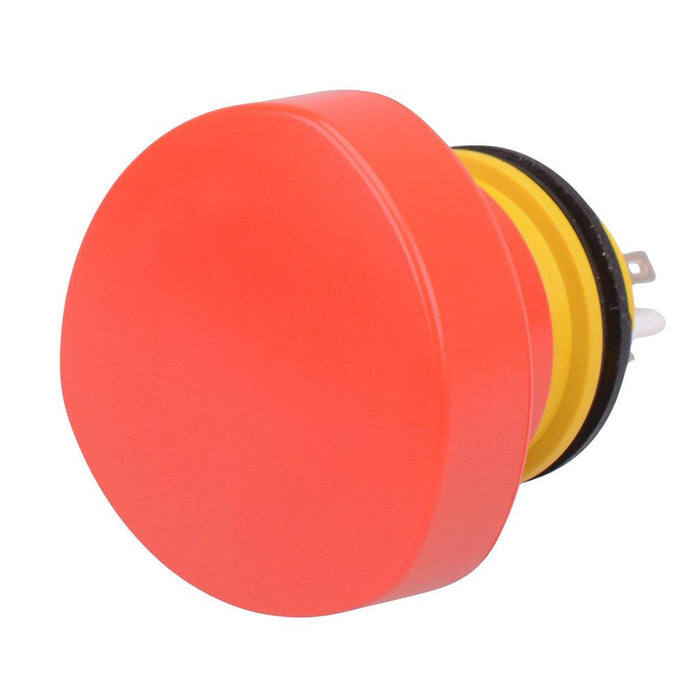

The EC-AMA-F-013-A is an emergency stop switch manufactured by APEM, featuring low behind panel depth and unique red triangle actuator. The switch features IP65 protection rating and 2NC contacts, suitable for a wide range of industrial applications.
2NC contacts 22.3mm panel hole diameter 1-4mm panel thickness IP65 protection level 2.8 x 0.8mm quick connect terminals 20.5mm behind panel depth UL, IDEC, CE approved
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 7 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Material | Silver Plated Brass |
| Current Rating | 5A |
| Electrical Life | 6,050 Cyles |
| Head Type | Triangle |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -35°C to +70°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 1-4mm |
| Product Series | EC |
| Protection Level | IP65 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250V |
