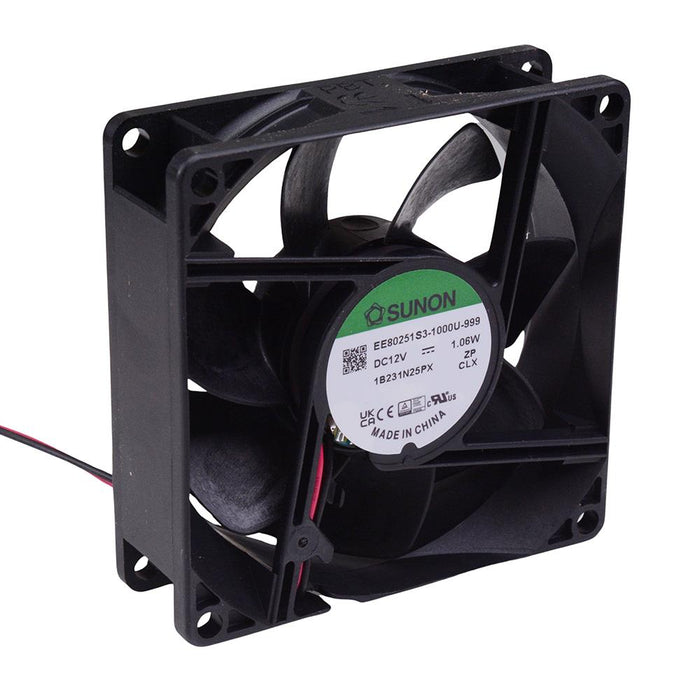

EE80251S3-999 12V DC Brushless Axial Fan 80 x 80 x 25mm

by Sunon
SKU 480046

MPN: EE80251S3-1000U-999

Availability:
45 in stock
Original price £4.02 - Original price £4.02
Original price
£4.02 Inc VAT
£4.02 - £4.02
Current price £4.02 Inc VAT
EE80251S3-999 12V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 80 x 80 x 25mm thermoplastic frame and is terminated using the wire leads.

  • Supply voltage: 12VDC
  • Operating voltage: 4.5-13.8VDC
  • Power consumption: 1.1W
  • Current rating: 0.09A
  • Noise level: 28dBA
  • Fan speed: 2600rpm
  • Slide bearing
  • Specification
    Back order lead time 5 Days
    Colour Black
    Current rating 0.088A
    Efficiency 55.77m3/h
    Height 80mm
    Length 80mm
    Material Thermoplastic
    Noise level 28dBA
    Operating temperature -10°C to 70°C
    Operating voltage 4.5V to 13.8VDC
    Power consumption 1.06W
    Rotational speed 2600rpm
    Supply voltage 12VDC
    Type of bearing Slide
    Width 25mm
