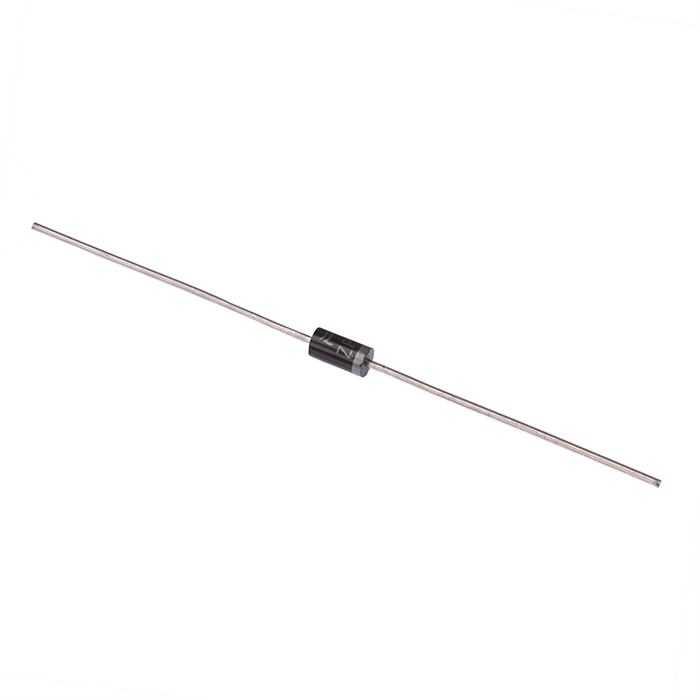

EM513 Rectifier Diode 1A 1600V
by Diotec
SKU 486266
MPN: EM513
Availability:
465 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
Inc VAT
£0.22
-
£0.22
Current price
£0.22
Inc VAT
The EM513 is a standard recovery rectifier diode featuring low leakage current and voltage drop. The diode is suitable for mains rectification, power supplies, polarity protection and industrial applications.
DO-41 package Repetitive peak reverse voltage: 1600V Maximum average forward rectified current: 1A Peak forward surge current: 30A
Specification
| Average rectified current | 1A |
| Back order lead time | 5 Days |
| Body dimensions | 5.1 x 2.6mm (Length x Diameter) |
| Lead dimensions | 0.77mm |
| Moq | 5 |
| Mounting style | Through Hole |
| Operating temperature | -50°C to 175°C |
| Package | DO-41 |
| Packaging | Tape |
| Peak reverse voltage | 1600V |
| Peak surge current | 30A |
