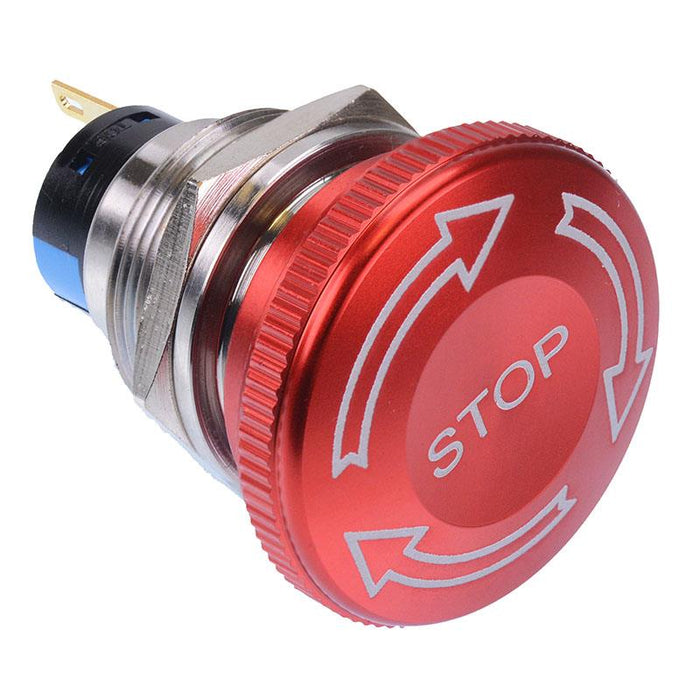

Emergency Stop 22mm Push Button Switch Stainless Steel 5A
SKU 484350
MPN: 484350
Availability:
Out of stock
Sold out
Original price
£17.00
-
Original price
£17.00
Original price
£17.00
£17.00
-
£17.00
Current price
£17.00
Vandal resistant emergency stop switch manufactured from stainless steel featuring a latching mechanism and twist release. The switch requires a 22mm panel cut-out and is suitable for a range of panel mount applications.
Push to lock in the 'Off' position, twist clockwise to release it Knurled actuator 1NO/1NC contacts Panel cut-out: 22mm Panel thickness: 1-6mm IP65 protection rating Solder 2.8 x 0.5mm terminals Rating: 0.5A 250VAC Body material: stainless steel Dimensions: 51 x 29.5mm (length x diameter)
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | 1NC |
| Contact Rating | 0.5A 250VAC |
| Current Rating | 0.5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 1-6mm |
| Protection Level | IP65 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
