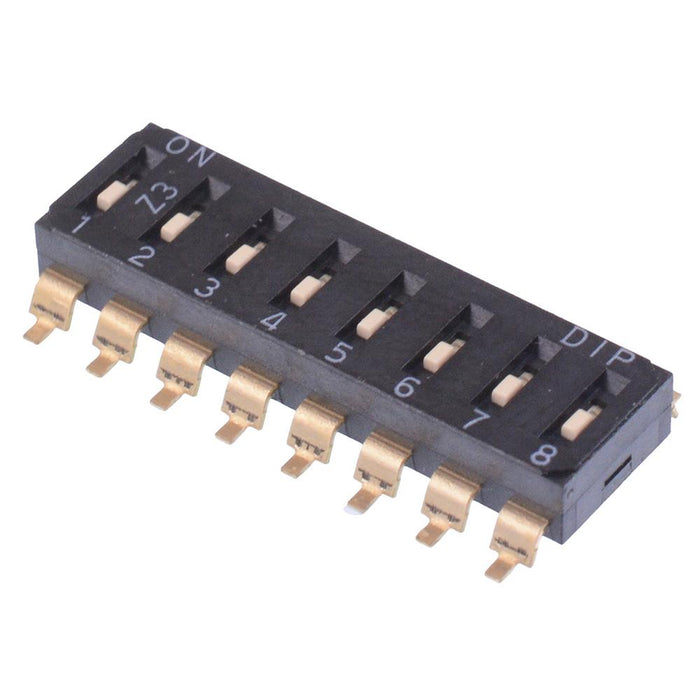

EMR-08-T-V Diptronics 8-Way Surface Mount 2.54mm DIP Switch SPST
by Diptronics
SKU 487682
MPN: EMR-08-T-V
Availability:
497 in stock
Original price
£0.77
-
Original price
£0.77
Original price
£0.77
£0.77
£0.77
-
£0.77
Current price
£0.77
The EMR-08-T-V is a 8 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 100ma current rating, suitable for PCB applications.
Recessed actuator 8 ways Contact rating: 25mA 24VDC Gold plated terminals 2.54mm pitch Tape sealed
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Mounting Style | Surface Mount |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Temperature | -20°C to +85°C |
| Pitch | 2.54mm |
| Product Series | EMR |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
