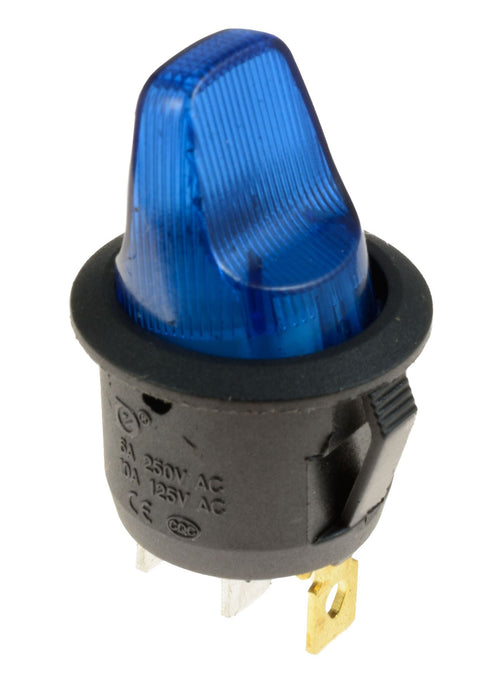

Fat illuminated Blue Toggle Switch SPST 12V
SKU 110106
MPN: 110106
Availability:
Out of stock
Sold out
Original price
£0.83
-
Original price
£0.83
Original price
£0.83
£0.83
£0.83
-
£0.83
Current price
£0.83
illuminated toggle switch with a large handle and push-fit mounting.
Requires 20mm cut-out 4.8mm terminals 12VDC illumination SPST contacts On-Off operation Dimensions: 41.4 x 22.8mm (Height x Diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC |
| Current Rating | 6A |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
