AS120-F Female 2+4 Gold Plated Connector with Cap 60A AMASS
by AMASS
SKU 482740
MPN: AS120-F.G2.Y
Availability:
8 in stock
Original price
£5.11
-
Original price
£5.11
Original price
£5.11
£5.11
£5.11
-
£5.11
Current price
£5.11

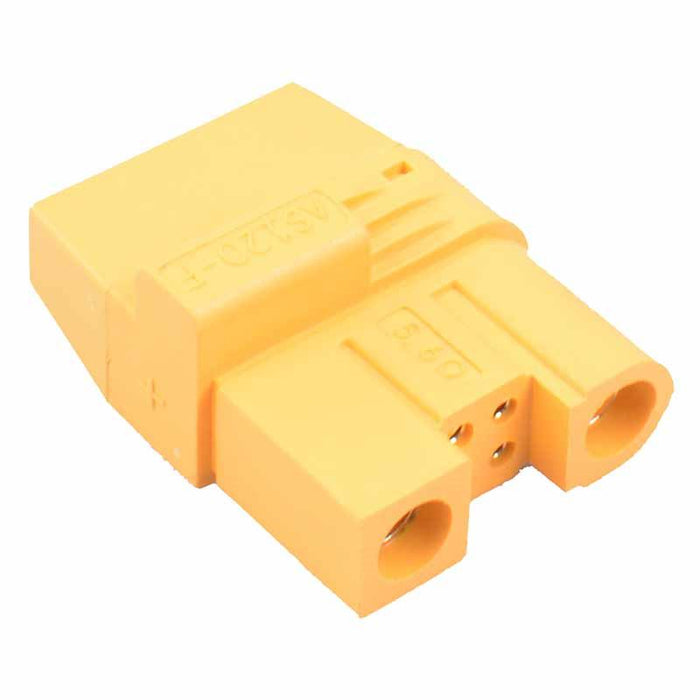

Female AS120 connector featuring 2 poles for power connections and 4 poles for signal and data transfer. The connectors feature gold plated brass contacts and high temperature nylon insulation making them suitable for a wide range of high power applications.
Continuous current rating: 60A Peak current rating: 120A Recommended cable size: 10AWG Contact material: gold plated brass Housing material: nylon
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow |
| Contact Material | Gold Plated Brass |
| Contact Resistance | 0.4mΩ |
| Current Rating | 60A |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2+4 |
| Termination Method | Solder |
