EC3-F Female Gold Plated Connector 25A AMASS
by AMASS
SKU 486714
MPN: EC3-F
Availability:
Only 2 left!
Original price
£0.47
-
Original price
£0.47
Original price
£0.47
£0.47
£0.47
-
£0.47
Current price
£0.47

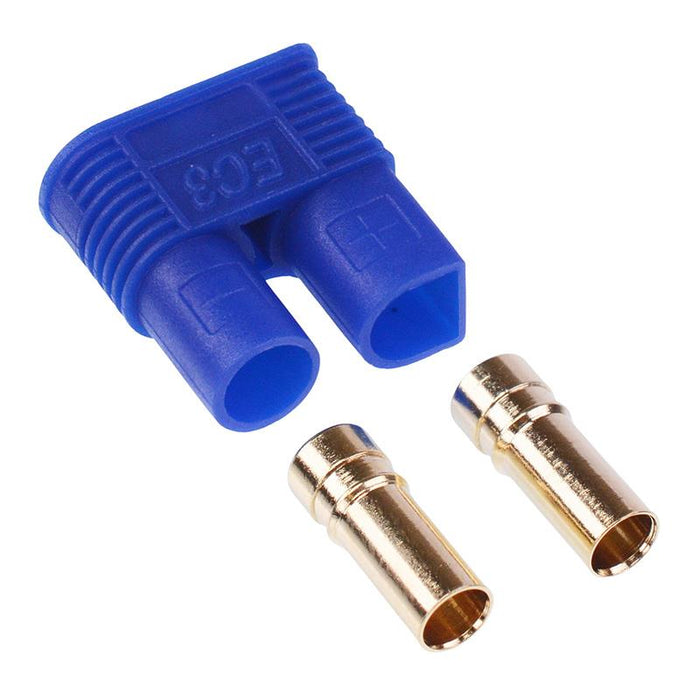

Female EC3 connector featuring a flame retardant nylon housing and gold plated copper contacts. The connectors are rated up to 15A are suitable for a wide range of RC and drone applications.
Manufactured by AMASS Current rating: 25A Contact material: gold plated brass Insulator material: flame retardant UL94-V2 nylon Operating temperature: -20℃ to 120℃
Specification
| Back Order Lead Time | 45 |
| Colour | Blue |
| Contact Material | Gold Plated Copper |
| Contact Resistance | ≤0.8mΩ |
| Current Rating | 25A |
| Dielectric Withstand Voltage | 500VDC |
| Gender | Female |
| Housing Material | PA |
| MOQ | 5 |
| Number of Poles | 2 |
| Operating Temperature | -20°C to 120°C |
