EC5-F Female Gold Plated Connector 40A AMASS
by AMASS
SKU 486716
MPN: EC5-F
Availability:
94 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
£0.81
£0.81
-
£0.81
Current price
£0.81

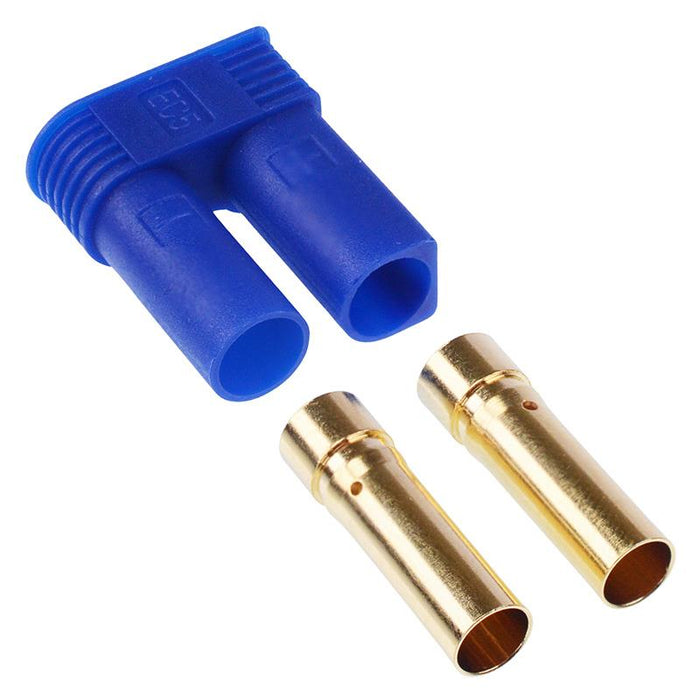

Female EC5 connector featuring a flame retardant nylon housing and gold plated copper contacts. The connectors are rated up to 40A are suitable for a wide range of RC and drone applications.
Manufactured by AMASS Current rating: 40A Contact material: gold plated brass Insulator material: flame retardant UL94-V2 nylon Operating temperature: -20℃ to 120℃
Specification
| Back Order Lead Time | 45 |
| Colour | Blue |
| Contact Material | Gold Plated Copper |
| Contact Resistance | ≤0.8mΩ |
| Current Rating | 40A |
| Dielectric Withstand Voltage | 500VDC |
| Gender | Female |
| Housing Material | PA |
| MOQ | 1 |
| Number of Poles | 2 |
| Operating Temperature | -20°C to 120°C |
