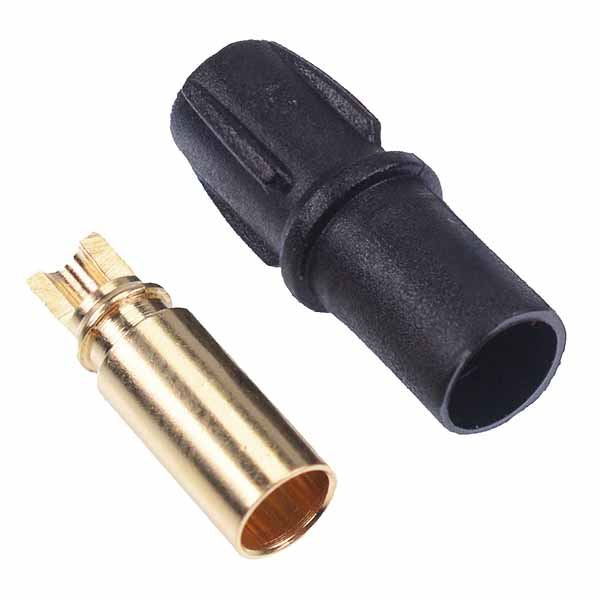

SH3.5-F Female Gold Plated Bullet Connector 20A AMASS
by AMASS
SKU 482742
MPN: SH3.5-F.G2.B
Availability:
368 in stock
Original price
£0.27
-
Original price
£0.27
Original price
£0.27
£0.27
£0.27
-
£0.27
Current price
£0.27
Female SH3.5 bullet connector manufactured from gold plated copper, providing excellent conductivity. The connectors are rated up to 20A continuous current, making them very versatile for a wide range of applications.
Continuous current rating: 20A Peak current rating: 40A Recommended cable size: 16AWG Contact material: gold plated brass Housing material: nylon Dimensions: 16 x 6.4mm (Length x Diameter)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Gold Plated Brass |
| Contact Resistance | 0.5mΩ |
| Current Rating | 20A |
| Dielectric Withstand Voltage | DC 130V |
| Gender | Female |
| Housing Material | Nylon |
| Number of Poles | 1 |
| Termination Method | Gender: Female |
