XT60PT-F Female Gold Plated Connector 30A AMASS
by AMASS
SKU 482755
MPN: XT60PT-F.G/Y
Availability:
423 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.78
£0.78
-
£0.78
Current price
£0.78

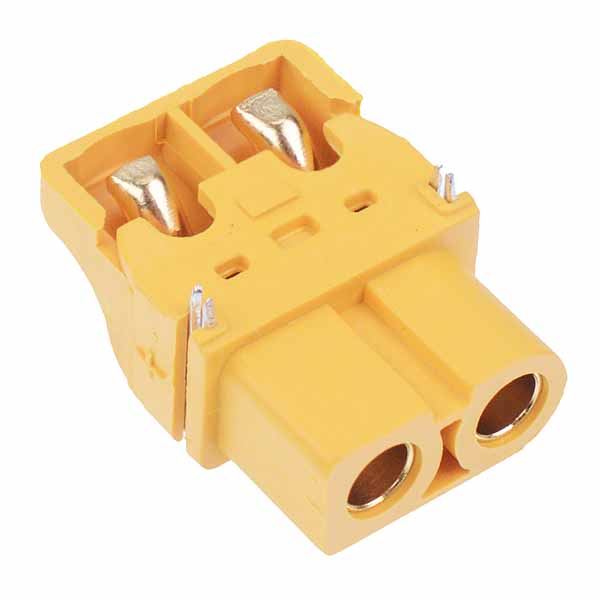

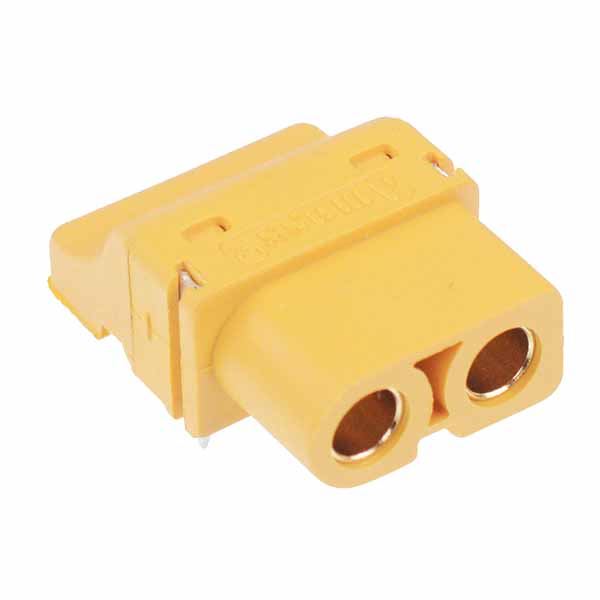

Female XT60PT connector featuring gold plated brass contacts and high temperature nylon housing. The connectors are housed in a compact package and are suitable for mounting horizontally to a board.
Manufactured by AMASS Current rating: 30A Contact material: gold plated brass Insulator material: nylon Recommended wire size: 16AWG
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow |
| Contact Material | Gold Plated Brass |
| Contact Resistance | 0.6mΩ |
| Current Rating | 30A |
| Dielectric Withstand Voltage | DC 500V |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2 |
| Termination Method | Solder |
