Flush Plastic Grade 2 NO Proximity Switch and Magnet Set 500mA 50V - CE421, S2019A
by Comus
SKU 552632
MPN: S2019A
Availability:
Only 5 left!
Original price
£3.20
-
Original price
£3.20
Original price
£3.20
Inc VAT
£3.20
-
£3.20
Current price
£3.20
Inc VAT

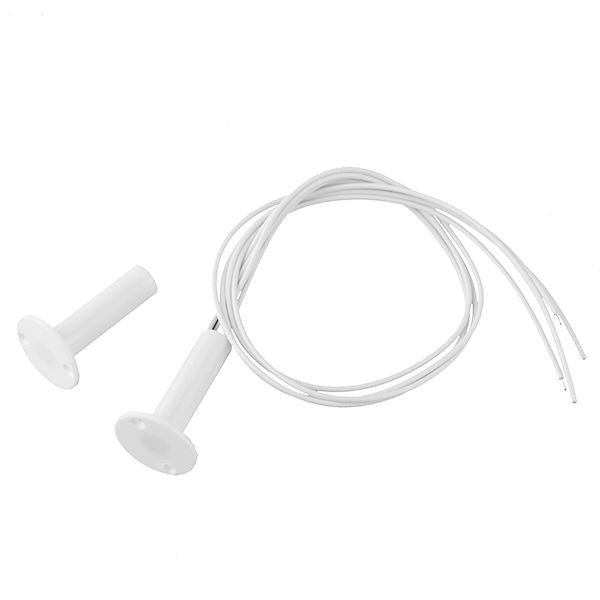

The CE421 is a flush mounting proximity reed switch and magnet set manufactured from high impact housing. Suitable for applications including alarm systems, appliance switching, production automation and safety door guards.
Security grade 2 to BS EN 50131-1 Normally open contacts + supervisory loop Operating distance: 15mm Maximum switching voltage: 50V AC/DC Maximum switching current: 0.5A Maximum switching capacity: 10W/VA High impact polystyrene case
Specification
| Back order lead time | 180 Days |
| Contact configuration | SPST-NO |
| Material | High Impact Polystyrene |
| Maximum switching capacity | 10W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 50VAC/DC |
| Operating temperature | -40°C to +60°C |
