FPAR1B1422X0X Black Latching Push Button Switch Round Actuator 24.2mm DPST APEM
by APEM
SKU 492498
MPN: FPAR1B1422X0X
Availability:
15 in stock
Original price
£37.98
-
Original price
£37.98
Original price
£37.98
£37.98
-
£37.98
Current price
£37.98

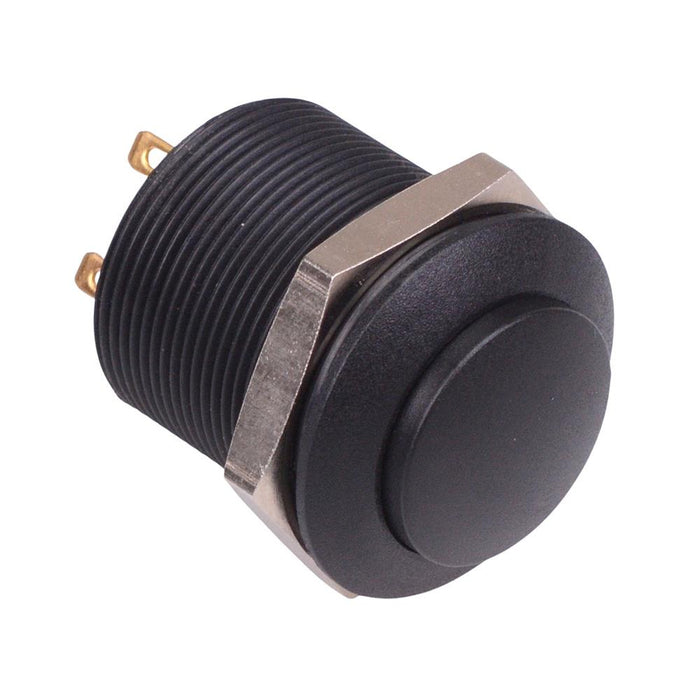

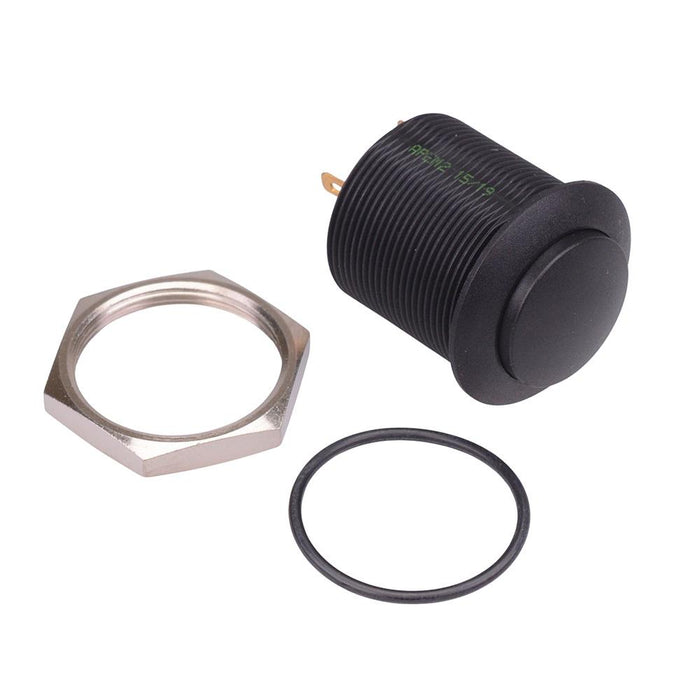

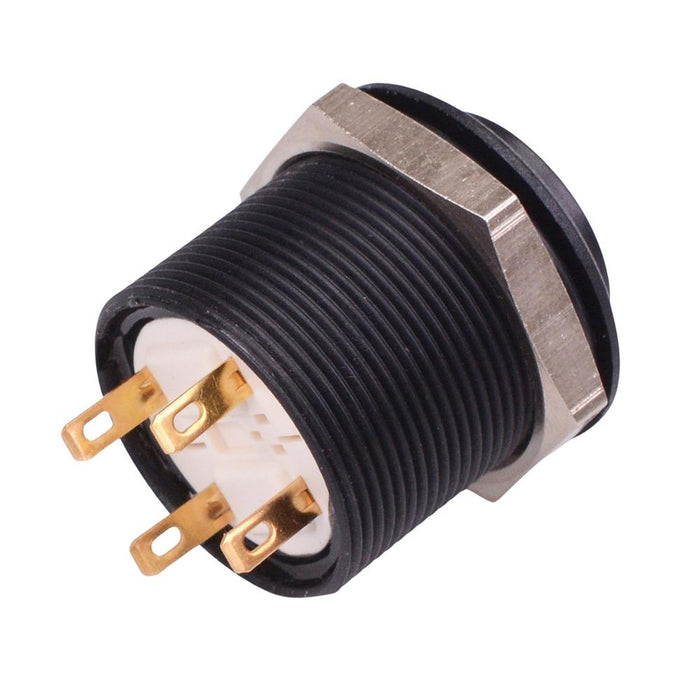

The FPAR1B1422X0X is a black push button switch featuring a latching mechanism and curved round actuator. The switch features DPST contacts and 24mm thread bushing, making it suitable for use in integrated designs.
Black button DPST contacts 24.2mm panel cut-out Curved round actuator Solder lug terminals Rating: 200mA 12VDC resistive load Panel thickness: 1-18mm Dimensions: 30.6 x 27.5mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | DPDT |
| Contact Material | Silver, Gold Plated |
| Contact Rating | 0.2A 12VDC |
| Current Rating | 0.2A |
| Electrical Life | 300,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 24.2mm |
| Panel Thickness | 18mm |
| Product Series | FP |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
