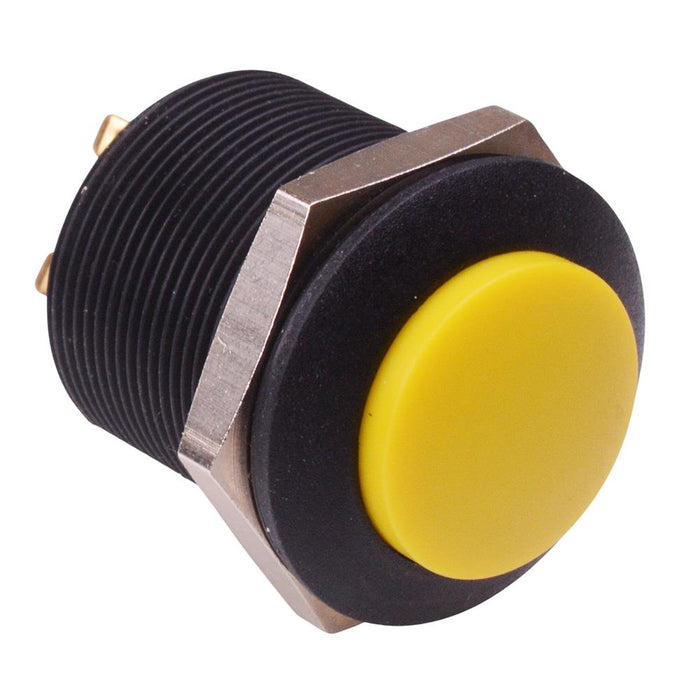

FPAR3B1452X0X APEM Yellow Off-(On) Momentary 24mm Push Button Switch DPST
by APEM
SKU 487663
MPN: FPAR3B1452X0X
Availability:
14 in stock
Original price
£17.42
-
Original price
£17.42
Original price
£17.42
£17.42
£17.42
-
£17.42
Current price
£17.42
The FPAR3B1452X0X is a yellow snap-in 24mm push button switch with Off-(On) momentary function and solder lug terminals. The switch features a 4A 12VDC rating and is suitable for applications including autotmotive and fireworks.
- Off-(On) momentary function
- DPST function
- Snap-in mounting
- Solder lug terminals
- Panel cut-out: 24mm
- Panel thickness: 1-18mm
- Rating: 4A 12VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Yellow |
| Contact Configuration | DPST |
| Contact Material | Silver |
| Contact Rating | 4A 12VDC |
| Current Rating | 4A |
| Electrical Life | 400,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 8N |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 24mm |
| Panel Thickness | 1-18mm |
| Product Series | FP |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
