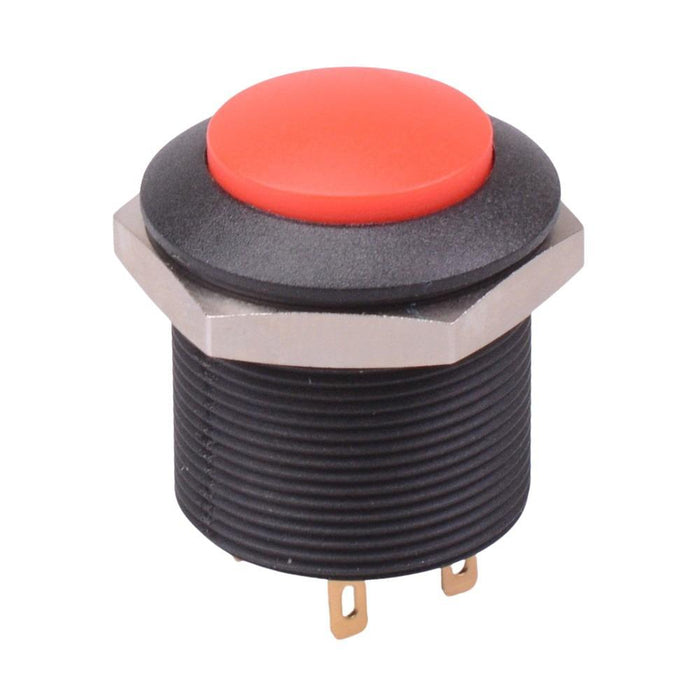

FPAR3B1462X0X APEM Red Off-(On) Momentary Push Button Switch Round Actuator 24.2mm DPST
by APEM
SKU 489962
MPN: FPAR3B1462X0X
Availability:
172 in stock
Original price
£18.07
-
Original price
£18.07
Original price
£18.07
£18.07
-
£18.07
Current price
£18.07

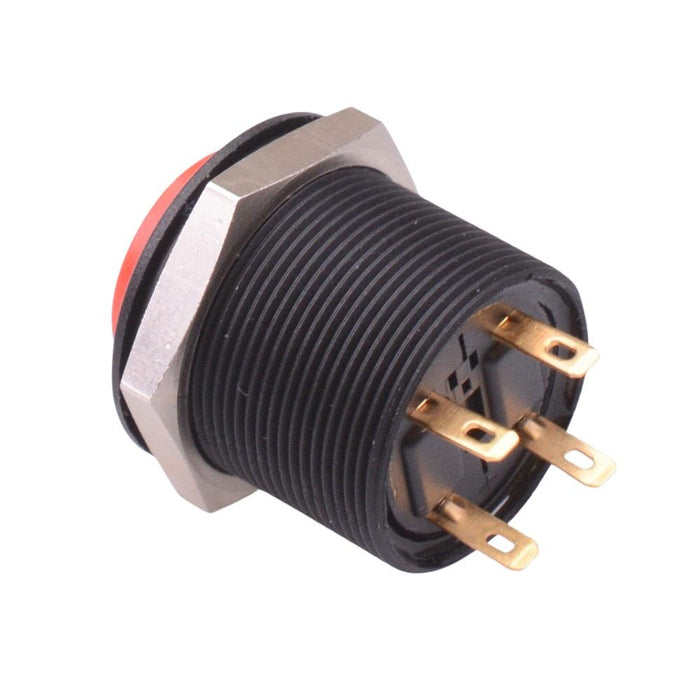

The FPAR3B1462X0X is a red snap-in 24mm push button switch with Off-(On) momentary function and solder lug terminals. The switch features a 0.2A 12VDC rating and is suitable for applications including autotmotive and fireworks.
Off-(On) momentary function DPST function Snap-in mounting Solder lug terminals Panel cut-out: 24.2mm Panel thickness: 1-18mm Rating: 0.2A 12VDC
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 0.2A 12VDC |
| Current Rating | 0.2A |
| Electrical Life | 300,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 24.2mm |
| Panel Thickness | 1-18mm |
| Product Series | FP |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
