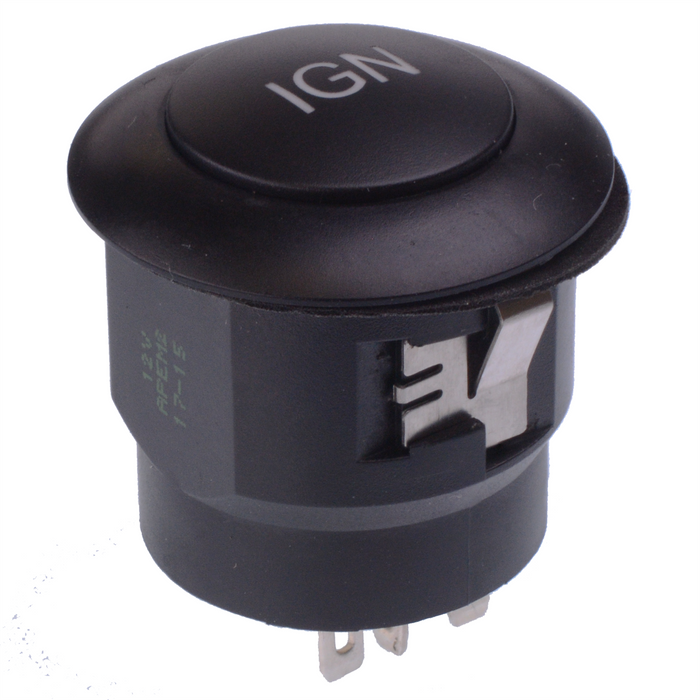

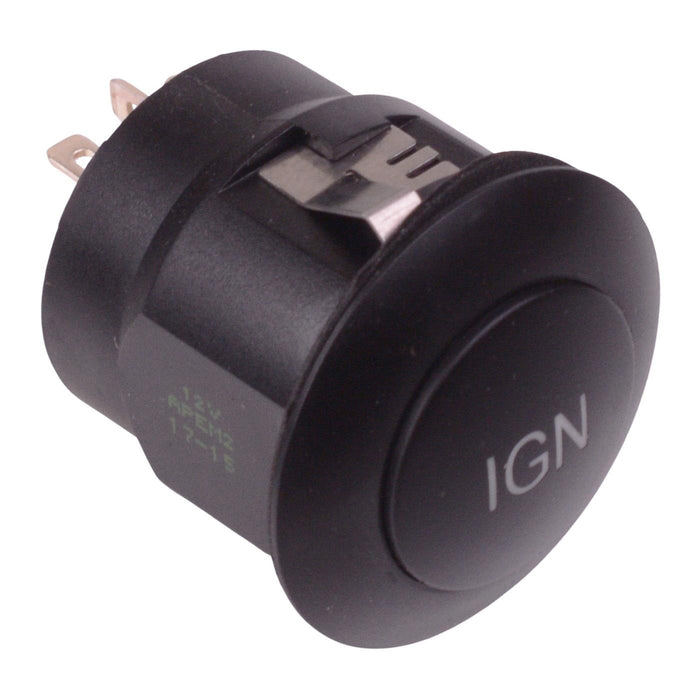

FPBR1D1222A12D5 APEM Blue illuminated On-Off Latching 26mm Push Button Switch DPST
by APEM
SKU 487684
MPN: FPBR1D1222A12D5
Availability:
11 in stock
Original price
£21.53
-
Original price
£21.53
Original price
£21.53
£22.61
£22.61
-
£22.61
Current price
£22.61
The FPBR1D1222A12D5 is a snap-in 26mm latching push button switch with Off-On function and solder lug terminals. The switch features blue 12V illumination and IGN laser marking. The switch is suitable for applications including autotmotive and fireworks.
On-Off function DPST function Snap-in mounting Blue 12VDC illumination Solder lug terminals Panel cut-out: 26mm Panel thickness: 1.5-2mm Rating: 4A 12VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPST |
| Contact Material | Silver |
| Contact Rating | 4A 12VDC |
| Current Rating | 4A |
| Electrical Life | 200,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | ABS |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 8N |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 26mm |
| Panel Thickness | 1.5-2mm |
| Product Series | FP |
| Protection Level | IP54 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
