FR0109M Standard 59g Digital Servo FeeTech
by Feetech
SKU 485582
MPN: FR0109M
Availability:
Only 1 left!
Original price
£19.52
-
Original price
£19.52
Original price
£19.52
Inc VAT
£19.52
-
£19.52
Current price
£19.52
Inc VAT

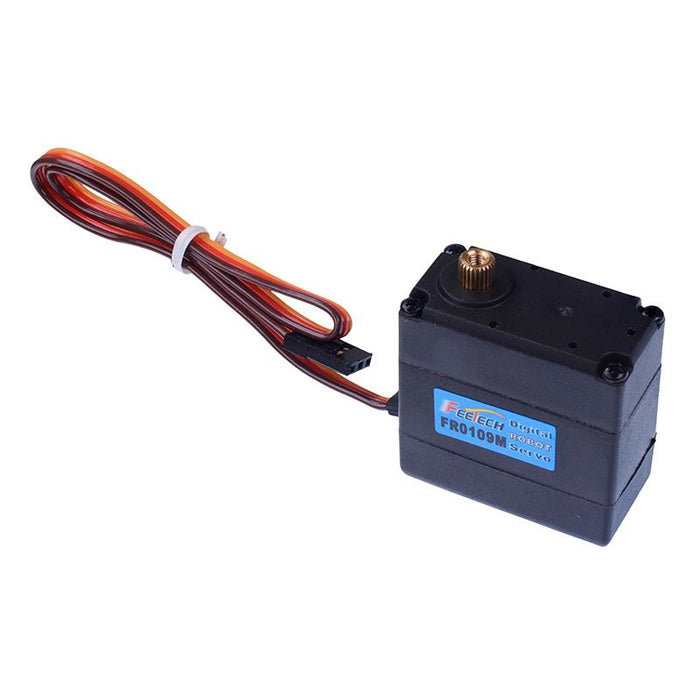

The FR0109M is a digital standard servo motor suitable for use with 5V signals. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.14(4.8V), 0.12(6V) sec/60° Torque: 9(4.8V), 10(6V) kg/cm Gears: metal Rotation: 180° Operating voltage: 4.8-6V Cable length: 300mm Weight: 59g Dimensions: 40 x 20 x 40.5mm (LxWxH)
Specification
| Back order lead time | 30 Days |
| Cable length | 300mm |
| Gear spline | 25T |
| Gear type | Metal |
| Height | 40.5mm |
| Idle current | 5mA at 4.8V |
| Input voltage | 4.8-6V |
| Length | 40mm |
| No load speed | 0.14sec/60degree at 4.8V |
| Operating temperature | -15°C to +70°C |
| Peak stall torque | 9kg.cm at 4.8V |
| Running current | 160mA at 4.8V |
| Stall current | 1.2A at 4.8V |
| Total rotation | 180° |
| Type | Digital |
| Weight | 59g |
| Width | 20mm |
