FR0115M Standard 62g Digital Servo FeeTech
by Feetech
SKU 485583
MPN: FR0115M
Availability:
Only 5 left!
Original price
£21.47
-
Original price
£21.47
Original price
£21.47
£21.47
-
£21.47
Current price
£21.47

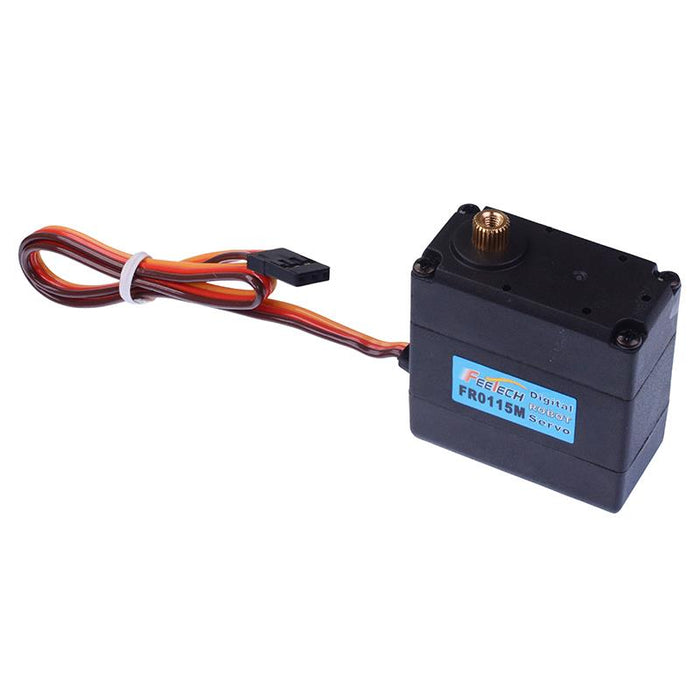

The FR0115M is a digital standard servo motor suitable for use with 5V signals. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.18(4.8V), 0.16(6V) sec/60° Torque: 14(4.8V), 15(6V) kg/cm Gears: metal Operating voltage: 4-8.4V Rotation: 180° Cable length: 30cm Weight: 62g Dimensions: 40 x 20 x 45.8mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Metal |
| Height | 40.2mm |
| Idle Current | 6mA at 4.8V |
| Input Voltage | 4-8.4V |
| Length | 40.2mm |
| No Load Speed | 0.18sec/60degree at 4.8V |
| Operating Temperature | -20°C to +60°C |
| Peak Stall Torque | 14kg.cm at 4.8V |
| Running Current | 160mA at 4.8V |
| Stall Current | 1.2A at 4.8V |
| Total Rotation | 180° |
| Type | Digital |
| Weight | 62g |
| Width | 20mm |
