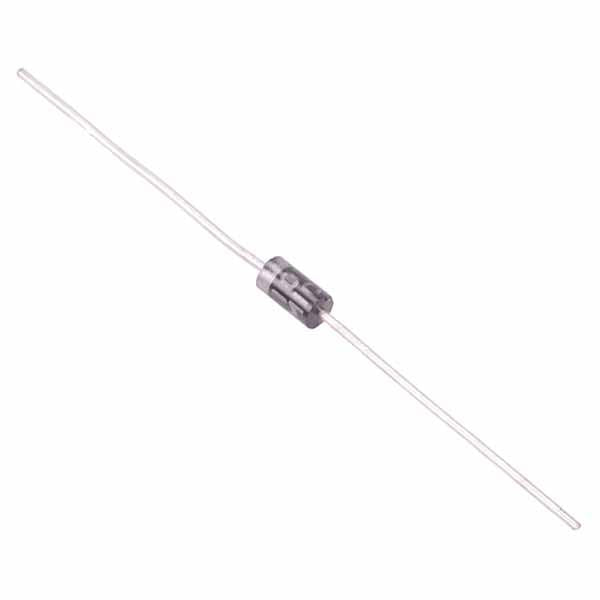

FR107 Rectifier Diode 1A 1000V
SKU 482542
MPN: 482542
Availability:
3948 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
Inc VAT
£0.12
-
£0.12
Current price
£0.12
Inc VAT
The FR107 is a fast recovery axial leaded rectifier diode. The diodes feature high current capability, low forward voltage drop and high reliability.
Maximum repetitive reverse voltage: 1000V Forward current: 1A Maximum forward voltage: 1.3V Maximum forward surge current: 30A DO-41 package
Specification
| Average rectified current | 1A |
| Back order lead time | 40 Days |
| Body dimensions | 2.7 x 5.2mm (Length x Diameter) |
| Lead dimensions | 0.86.x 25.4mm (Diameter x Length) |
| Maximum dc blocking voltage | 1000V |
| Maximum forward voltage | 1.3V |
| Maximum rms voltage | 700V |
| Moq | 10 |
| Mounting style | Through Hole |
| Operating temperature | -65°C to 150°C |
| Package | DO-41 |
| Packaging | Tape |
| Peak reverse voltage | 1000V |
| Peak surge current | 50A |
