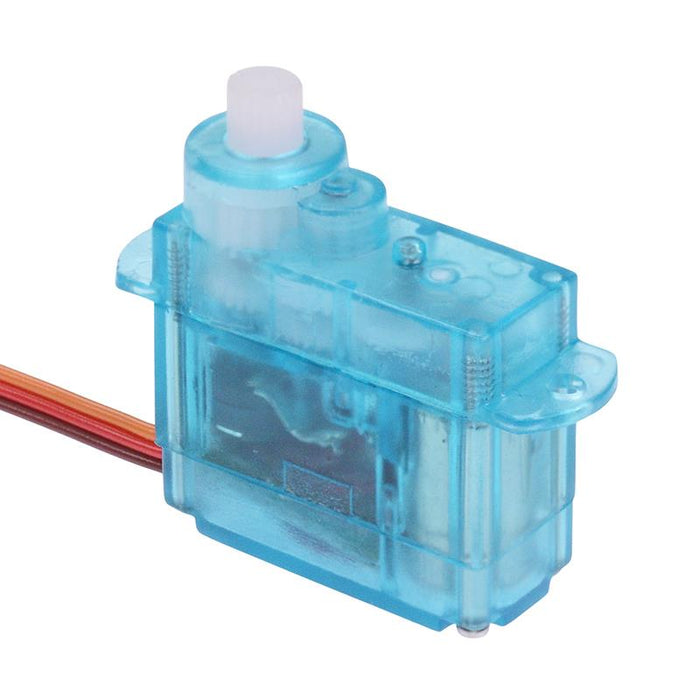

FS0403 Super Micro 4.3g Analog Servo FeeTech
by Feetech
SKU 485560
MPN: FS0403
Availability:
13 in stock
Original price
£5.72
-
Original price
£5.72
Original price
£5.72
£5.72
-
£5.72
Current price
£5.72
The FS0403 is an analog super micro servo motor with an operating voltage range of 4.8V to 6V, suitable for robotic and general purpose applications.
Type: analog
Speed: 0.09(4.8V), 0.08(6V) sec/60°
Torque: 0.6(4.8V), 0.7(6V) kg/cm
Gears: plastic
Rotation: 120°
Cable length: 150mm
Weight: 4.3g
Dimensions: 20 x 8.3 x 19.3mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 150mm |
| Gear Spline | 20T |
| Gear Type | Plastic |
| Height | 19.3mm |
| Idle Current | 5mA at 4.8V |
| Input Voltage | 4.8-6V |
| Length | 20mm |
| No Load Speed | 0.09sec/60degree at 4.8V |
| Operating Temperature | -15°C to +70°C |
| Peak Stall Torque | 0.6kg.cm at 4.8V |
| Running Current | 60mA at 4.8V |
| Stall Current | 500mA at 4.8V |
| Total Rotation | 120° |
| Type | Analog |
| Weight | 4.3g |
| Width | 8.3mm |
