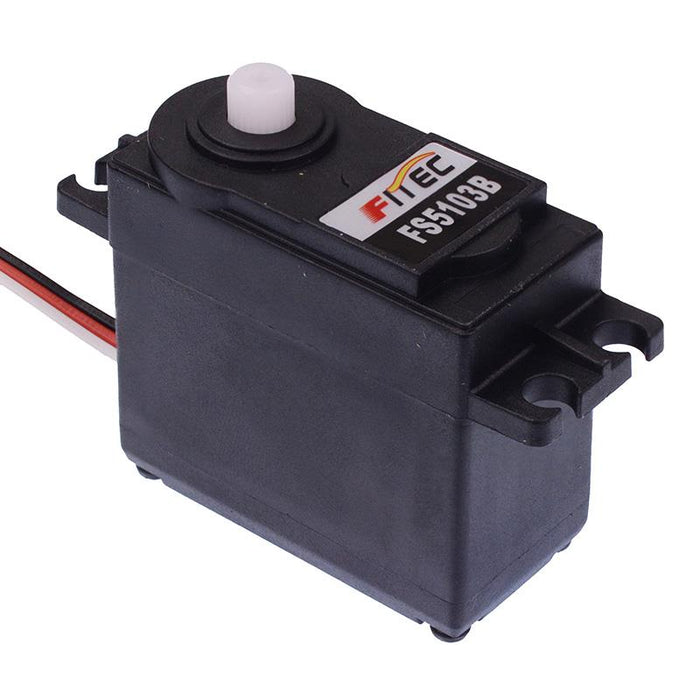

FS5103B Standard 41.5g Analog Servo FeeTech
by Feetech
SKU 485568
MPN: FS5103B
Availability:
Out of stock
Sold out
Original price
£7.73
-
Original price
£7.73
Original price
£7.73
£7.73
-
£7.73
Current price
£7.73
The FS5103B is an analog standard servo motor with an operating voltage range of 4V to 8.4V, suitable for robotic and general purpose applications.
Type: analog Speed: 0.15(4.8V), 0.12(6V) sec/60° Torque: 2.6(4.8V), 3.2(6V) kg/cm Gears: plastic Rotation: 180° Operating voltage: 4-8.4V Cable length: 30cm Weight: 41.5g Dimensions: 40.1 x 20.1 x 42.2mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Plastic |
| Height | 37.2mm |
| Idle Current | 6mA at 4.8V |
| Input Voltage | 4-8.4V |
| Length | 40.15mm |
| No Load Speed | 0.154sec/60degree at 4.8V |
| Operating Temperature | -20°C to +60°C |
| Peak Stall Torque | 2.6kg.cm at 4.8V |
| Running Current | 130mA at 4.8V |
| Stall Current | 900mA at 4.8V |
| Total Rotation | 180° |
| Type | Analog |
| Weight | 41.5g |
| Width | 20.15mm |
