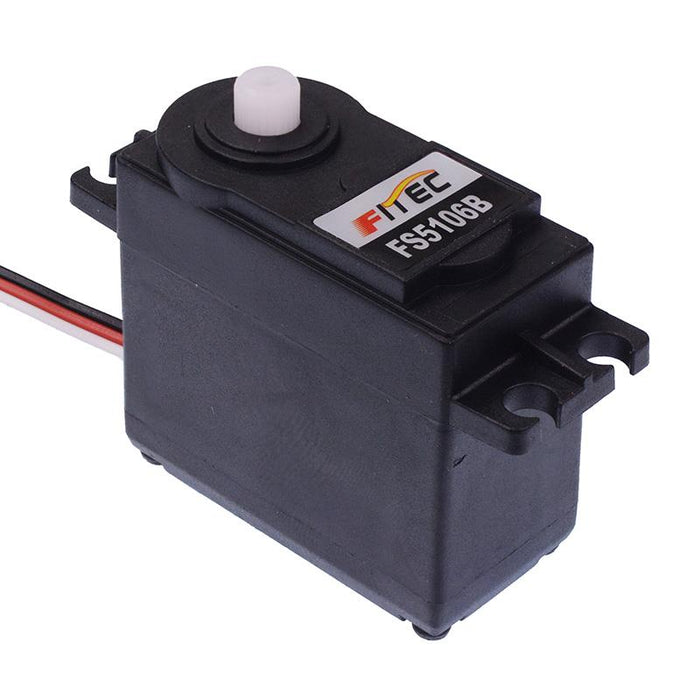

FS5106B Standard 41.5g Analog Servo FeeTech
by Feetech
SKU 485569
MPN: FS5106B
Availability:
16 in stock
Original price
£9.41
-
Original price
£9.41
Original price
£9.41
£10.67
£10.67
-
£10.67
Current price
£10.67
The FS5106B is an analog standard servo motor with an operating voltage range of 4V to 8.4V, suitable for robotic and general purpose applications.
Type: analog Speed: 0.13(4.8V), 0.1(6V) sec/60° Torque: 4.8(4.8V), 6(6V) kg/cm Gears: plastic Rotation: 180° Operating voltage: 4-8.4V Cable length: 30cm Weight: 41.5g Dimensions: 40.8 x 20.1 x 42.2mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Plastic |
| Height | 37.2mm |
| Idle Current | 6mA at 4.8V |
| Input Voltage | 4-8.4V |
| Length | 40.15mm |
| No Load Speed | 0.133sec/60degree at 4.8V |
| Operating Temperature | -20°C to +60°C |
| Peak Stall Torque | 4.8kg.cm at 4.8V |
| Running Current | 140mA at 4.8V |
| Stall Current | 1.8A at 4.8V |
| Total Rotation | 180° |
| Type | Analog |
| Weight | 41.5g |
| Width | 20.15mm |
