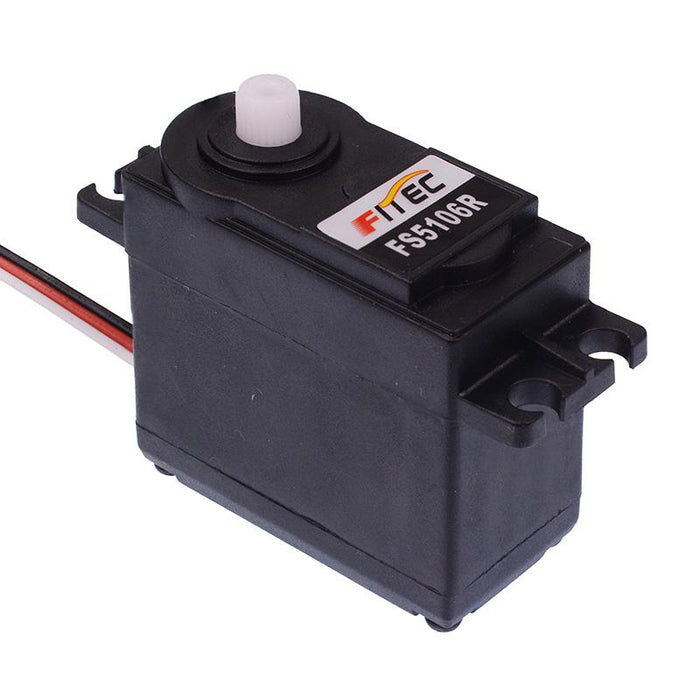

FS5106R Standard 41.5g Analog 360° Continuous Rotation Servo FeeTech
by Feetech
SKU 485574
MPN: FS5106R
Availability:
Only 2 left!
Original price
£10.36
-
Original price
£10.36
Original price
£10.36
Inc VAT
£10.36
-
£10.36
Current price
£10.36
Inc VAT
The FS5106R is an analog standard servo motor with an operating voltage range of 4V to 8.4V, suitable for robotic and general purpose applications.
Type: analog Speed: 0.133(4.8V), 0.105(6V) sec/60° Torque: 4.8(4.8V), 6(6V) kg/cm Gears: plastic Rotation: 360° Operating voltage: 4-8.4V Cable length: 30cm Weight: 41.5g Dimensions: 40.1 x 20.1x 42.8mm (LxWxH)
Specification
| Back order lead time | 30 Days |
| Cable length | 300mm |
| Gear spline | 25T |
| Gear type | Plastic |
| Height | 37.2mm |
| Idle current | 6mA at 4.8V |
| Input voltage | 4-8.4V |
| Length | 40.15mm |
| No load speed | 0.133sec/60degree at 4.8V |
| Operating temperature | -20°C to +60°C |
| Peak stall torque | 4.8kg.cm at 4.8V |
| Running current | 250mA at 4.8V |
| Stall current | 900mA at 4.8V |
| Total rotation | 360° |
| Type | Analog |
| Weight | 41.5g |
| Width | 20.15mm |
