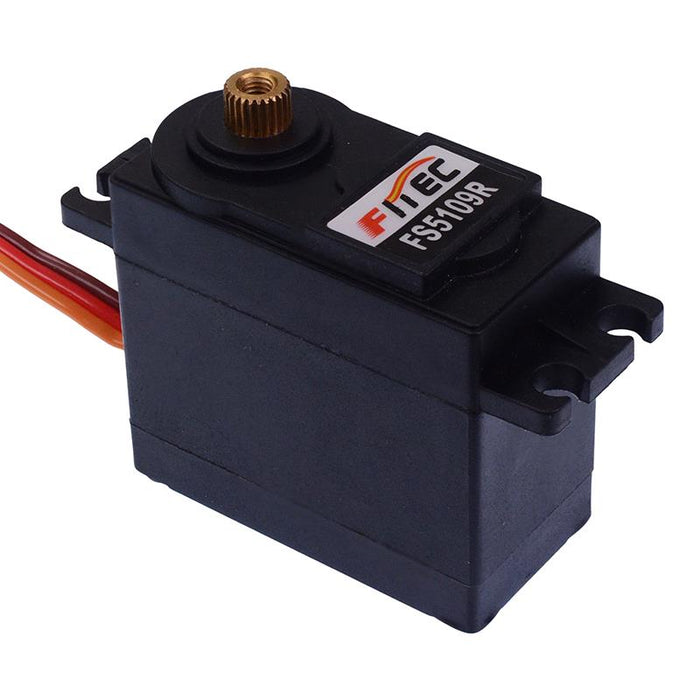

FS5109R Standard 60.6g Analog 360° Continuous Rotation Servo FeeTech
by Feetech
SKU 485575
MPN: FS5109R
Availability:
Out of stock
Sold out
Original price
£17.95
-
Original price
£17.95
Original price
£17.95
£17.95
-
£17.95
Current price
£17.95
The FS5109R is an analog standard servo motor with an operating voltage range of 4V to 8.4V, suitable for robotic and general purpose applications.
Type: analog Speed: 0.18(4.8V), 0.16(6V) sec/60° Torque: 9(4.8V), 10.2(6V) kg/cm Gears: metal Rotation: 360° Operating voltage: 4-8.4V Cable length: 30cm Weight: 60.6g Dimensions: 40.1 x 20.1x44.3mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Metal |
| Height | 38.9mm |
| Idle Current | 6mA at 4.8V |
| Input Voltage | 4-8.4V |
| Length | 40.1mm |
| No Load Speed | 0.25sec/60degree at 4.8V |
| Operating Temperature | -20°C to +60°C |
| Peak Stall Torque | 9kg.cm at 4.8V |
| Running Current | 150mA at 4.8V |
| Stall Current | 1.3A at 4.8V |
| Total Rotation | 180° |
| Type | Analog |
| Weight | 60.7g |
| Width | 20.1mm |
