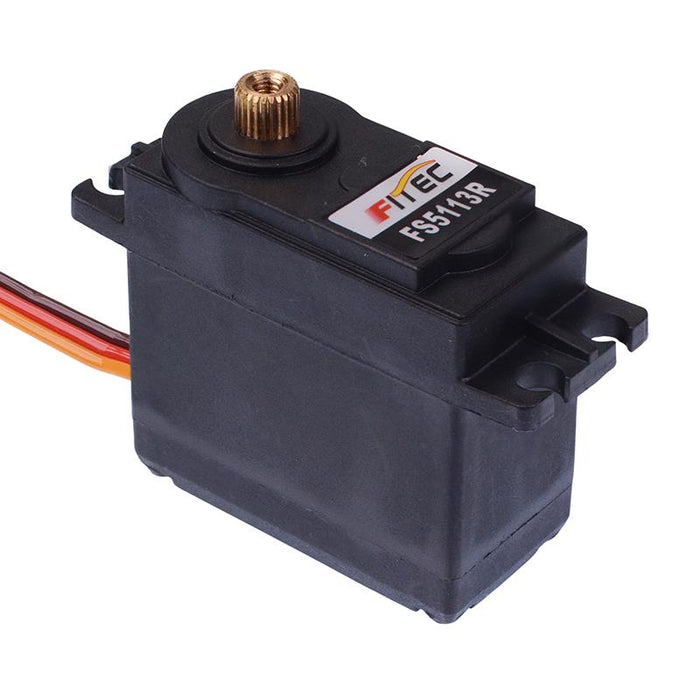

FS5113R Standard 56g Digital 360° Continuous Rotation Servo FeeTech
by Feetech
SKU 485576
MPN: FS5113R
Availability:
15 in stock
Original price
£17.63
-
Original price
£17.63
Original price
£17.63
£19.99
£19.99
-
£19.99
Current price
£19.99
The FS5113R is a digital standard servo motor with an operating voltage range of 4.8V to 6V, suitable for robotic and general purpose applications.
Type: digital Speed: 0.18(4.8V), 0.16(6V) sec/60° Torque: 12.5(4.8V), 14(6V) kg/cm Rotation: 360° Gears: metal Cable length: 30cm Weight: 56g Dimensions: 40.8 x 20.1 x 42.8mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Metal |
| Height | 38mm |
| Idle Current | 5mA at 4.8V |
| Input Voltage | 4.8-6V |
| Length | 40.8mm |
| No Load Speed | 0.2sec/60degree at 4.8V |
| Operating Temperature | -15°C to +70°C |
| Peak Stall Torque | 12.5kg.cm at 4.8V |
| Running Current | 160mA at 4.8V |
| Stall Current | 1.5A at 4.8V |
| Total Rotation | 360° |
| Type | Digital |
| Weight | 56g |
| Width | 20.1mm |
