FS5115M Standard 60.7g Analog Servo FeeTech
by Feetech
SKU 485571
MPN: FS5115M
Availability:
Out of stock
Sold out
Original price
£15.29
-
Original price
£15.29
Original price
£15.29
Inc VAT
£15.29
-
£15.29
Current price
£15.29
Inc VAT

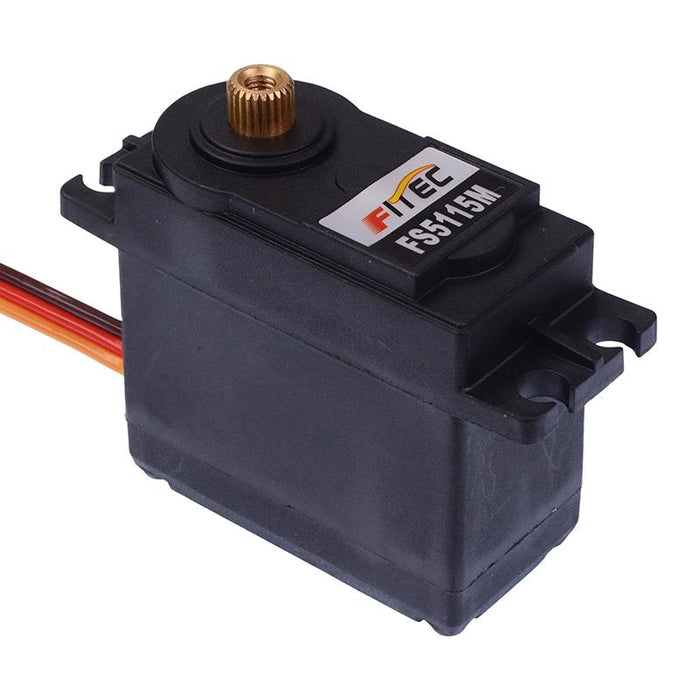

The FS5115M is an analog standard servo motor with an operating voltage between 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: analog Speed: 0.25(4.8V), 0.2(6V) sec/60° Torque: 14(4.8V), 15.5(6V) kg/cm Gears: metal Rotation: 180° Operating voltage: 4-8.4V Cable length: 30cm Weight: 60.76g Dimensions: 40.1 x 20.1x 44.3mm (LxWxH)
Specification
| Back order lead time | 30 Days |
| Cable length | 300mm |
| Gear spline | 25T |
| Gear type | Metal |
| Height | 38.9mm |
| Idle current | 6mA at 4.8V |
| Input voltage | 4-8.4V |
| Length | 40.1mm |
| No load speed | 0.25sec/60degree at 4.8V |
| Operating temperature | -20°C to +60°C |
| Peak stall torque | 14kg.cm at 4.8V |
| Running current | 180mA at 4.8V |
| Stall current | 1.3A at 4.8V |
| Total rotation | 180° |
| Type | Analog |
| Weight | 60.7g |
| Width | 20.1mm |
