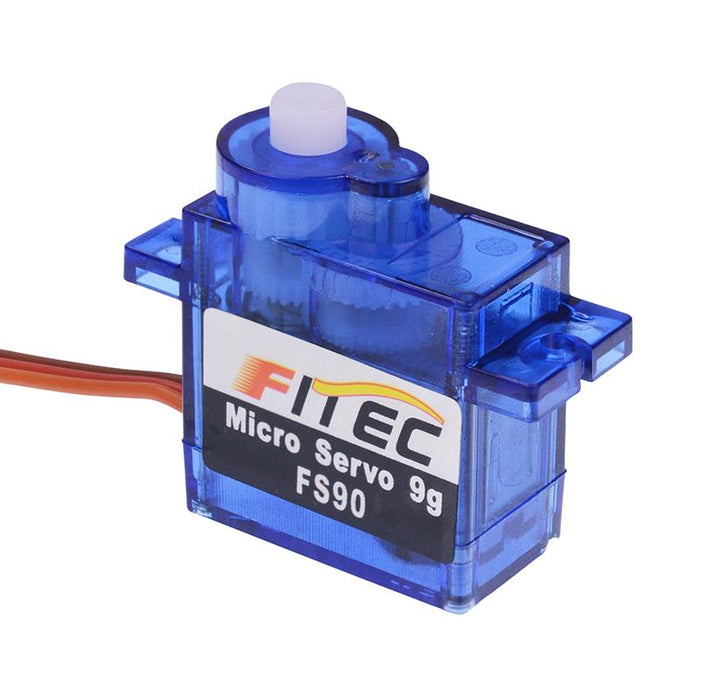

FS90 Mini 9g Analog Servo FeeTech

by Feetech
SKU 485561

MPN: FS90

Availability:
Out of stock
Sold out
Original price £3.60 - Original price £3.60
Original price
£3.60 Inc VAT
£3.60 - £3.60
Current price £3.60 Inc VAT
The FS90 is an analog mini servo motor with an operating voltage between 4.8V to 6V, suitable for robotic and general purpose applications.

  • Type: analog
  • Speed: 0.12(4.8V), 0.10(6V) sec/60°
  • Torque: 1.3(4.8V), 1.5(6V) kg/cm
  • Rotation: 180°
  • Operating voltage: 4.8-6V
  • Gears: plastic
  • Cable length: 250mm
  • Weight: 9g
  • Dimensions: 22.5 x 12.1 x 29.7mm (LxWxH)
  • Specification
    Back order lead time 30 Days
    Cable length 250mm
    Gear spline 21T
    Gear type Plastic
    Height 22.4mm
    Idle current 5mA at 4.8V
    Input voltage 4.8-6V
    Length 22.5mm
    No load speed 0.12sec/60degree at 4.8V
    Operating temperature -15°C to +70°C
    Peak stall torque 1.3kg.cm at 4.8V
    Running current 100mA at 4.8V
    Stall current 700mA at 4.8V
    Total rotation 180°
    Type Analog
    Weight 9g
    Width 12.1mm
