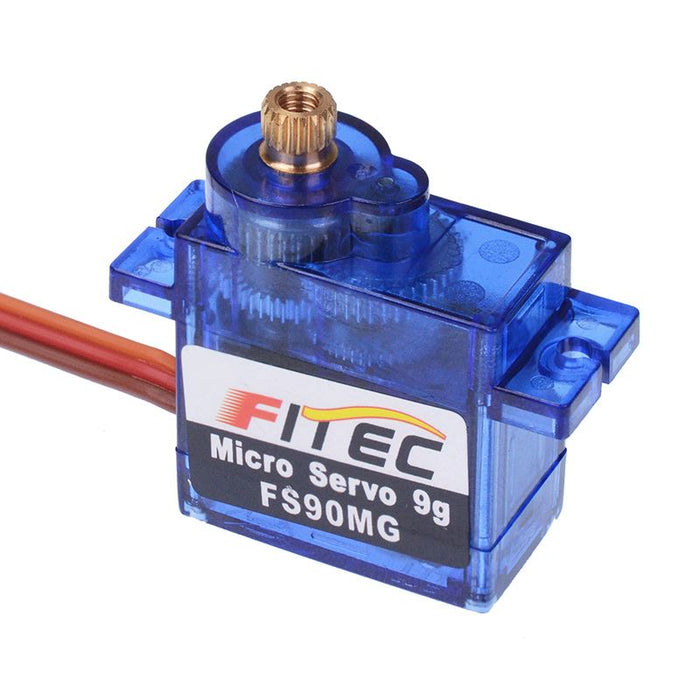

FS90MG Mini 12.7g Digital Servo FeeTech

by Feetech
SKU 485563

MPN: FS90MG

Availability:
Out of stock
Sold out
Original price £6.05 - Original price £6.05
Original price
£6.05 Inc VAT
£6.05 - £6.05
Current price £6.05 Inc VAT
The FS90MG is a digital mini servo motor with an operating voltage between 3.3V to 6V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.

  • Type: analog
  • Speed: 0.087(4.8V), 0.07(6V) sec/60°
  • Torque: 1.8(4.8V), 2.2(6V) kg/cm
  • Rotation: 180°
  • Operating voltage: 3.3-6V
  • Gears: metal
  • Cable length: 250mm
  • Weight: 12.7g
  • Dimensions: 22.5 x 12.1 x 30.7mm (LxWxH)
  • Specification
    Back order lead time 30 Days
    Cable length 250mm
    Gear spline 20T
    Gear type Metal
    Height 26.7mm
    Idle current 6mA at 4.8V
    Input voltage 3.3-6V
    Length 22.5mm
    No load speed 0.087sec/60degree at 4.8V
    Operating temperature -10°C to +60°C
    Peak stall torque 1.8kg.cm at 4.8V
    Running current 190mA at 4.8V
    Stall current 600mA at 4.8V
    Total rotation 180°
    Type Digital
    Weight 12.7g
    Width 12.1mm
