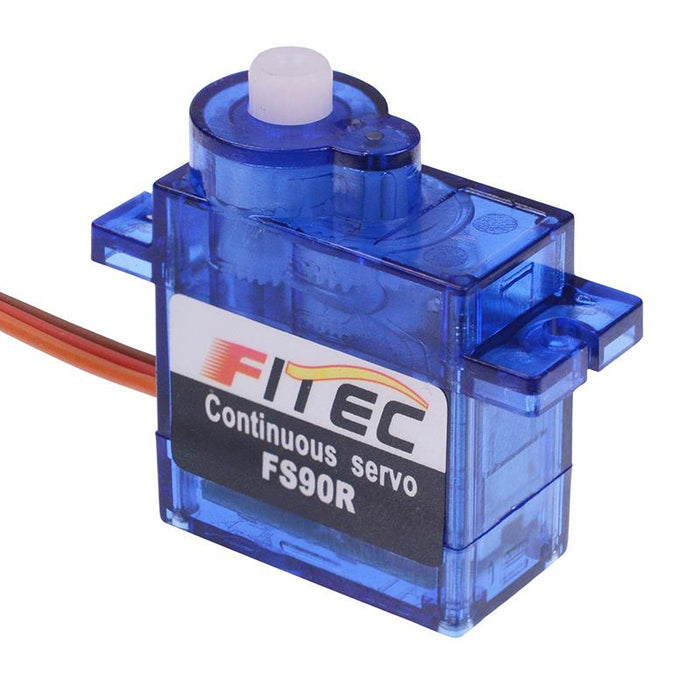

FS90R Mini 9g Analog 360° Continuous Rotation Servo FeeTech

by Feetech
SKU 485562

MPN: FS90R

Availability:
Out of stock
Sold out
Original price £5.56 - Original price £5.56
Original price
£5.56
£5.56 - £5.56
Current price £5.56
The FS90R is an analog mini servo motor with an operating voltage between 4.8V to 6V, suitable for robotic and general purpose applications.

  • Type: analog
  • Speed: 0.12(4.8V), 0.10(6V) sec/60°
  • Torque: 1.3(4.8V), 1.5(6V) kg/cm
  • Rotation: 360°
  • Operating voltage: 4.8-6V
  • Gears: plastic
  • Cable length: 250mm
  • Weight: 9g
  • Dimensions: 22.5 x 12.1 x 30.7mm (LxWxH)
  • Specification
    Back Order Lead Time 30 Days
    Cable Length 250mm
    Gear Spline 21T
    Gear Type Plastic
    Height 27.7mm
    Idle Current 5mA at 4.8V
    Input Voltage 4.8-6V
    Length 22.5mm
    No Load Speed 0.125sec/60degree at 4.8V
    Operating Temperature -15°C to +70°C
    Peak Stall Torque 1.3kg.cm at 4.8V
    Running Current 110mA at 4.8V
    Stall Current 700mA at 4.8V
    Total Rotation 360°
    Type Analog
    Weight 9g
    Width 12.1mm
