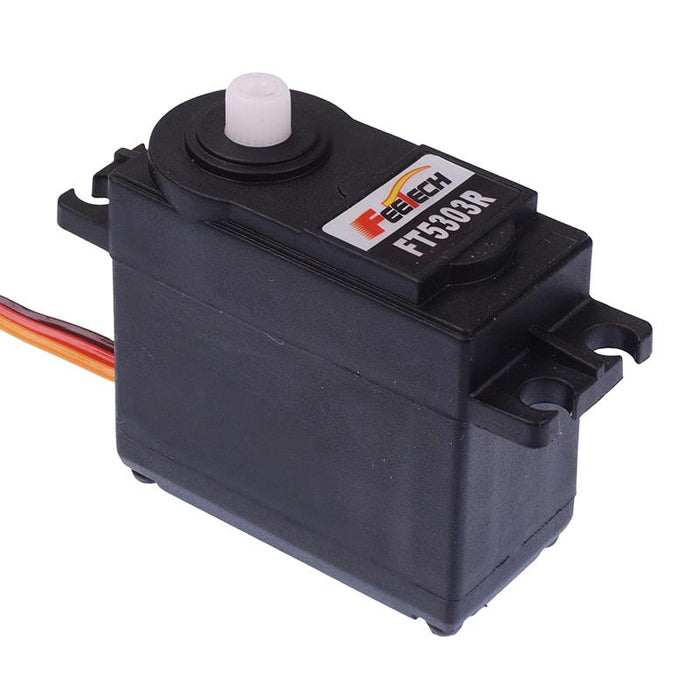

FT5303R Standard 43.8g Digital 360° Continuous Rotation Servo FeeTech
by Feetech
SKU 485573
MPN: FT5303R
Availability:
Out of stock
Sold out
Original price
£10.14
-
Original price
£10.14
Original price
£10.14
£11.49
£11.49
-
£11.49
Current price
£11.49
The FT5303R is a digital standard servo motor with an operating voltage range of 3V to 6V, suitable for robotic and general purpose applications.
Type: digital Speed: 0.18(4.8V), 0.16(6V) sec/60° Torque: 3(4.8V), 3.5(6V) kg/cm Rotation: 360° Gears: plastic Operating voltage: 3-6V Cable length: 30cm Weight: 43.8g Dimensions: 40.1 x 20.1 x 42.8mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Plastic |
| Height | 37.55mm |
| Idle Current | 5mA at 4.8V |
| Input Voltage | 3-6V |
| Length | 40.15mm |
| No Load Speed | 0.154sec/60degree at 4.8V |
| Operating Temperature | -20°C to +70°C |
| Peak Stall Torque | 3kg.cm at 4.8V |
| Running Current | 130mA at 4.8V |
| Stall Current | 800mA at 4.8V |
| Total Rotation | 360° |
| Type | Digital |
| Weight | 43.8g |
| Width | 20.15mm |
